  • Lead Free German Ersa Reflow Oven HOTFLOW-4/26
Lead Free German Ersa Reflow Oven HOTFLOW-4/26

Lead Free German Ersa Reflow Oven HOTFLOW-4/26

  • Name: SMT Reflow Oven
  • Heating zones: 8-26
  • Heating method: Hot Air
  • Usage: SMT production line
  • Product description: Lead Free German Ersa Reflow Oven HOTFLOW-4/26
  • INQUIRY

Lead Free German Ersa Reflow Oven HOTFLOW-4/26

Specifications:


Lead Free German Ersa Reflow Oven HOTFLOW-4/26

Excellent heat transfer with the most varied board assemblies
Rest-oxygen monitoring with low N2 consumption
Low energy consumption through intelligent energy management
Multi-level controlled cooling
Multi-level process gas cleaning system
"On the fly" maintenance for increased machine availability / uptime
Multi-track conveyor system (1-4)
Ersa Process Control (EPC) for continuous process monitoring
Ersa Auto Profiler software for quickly generating temperature profiles

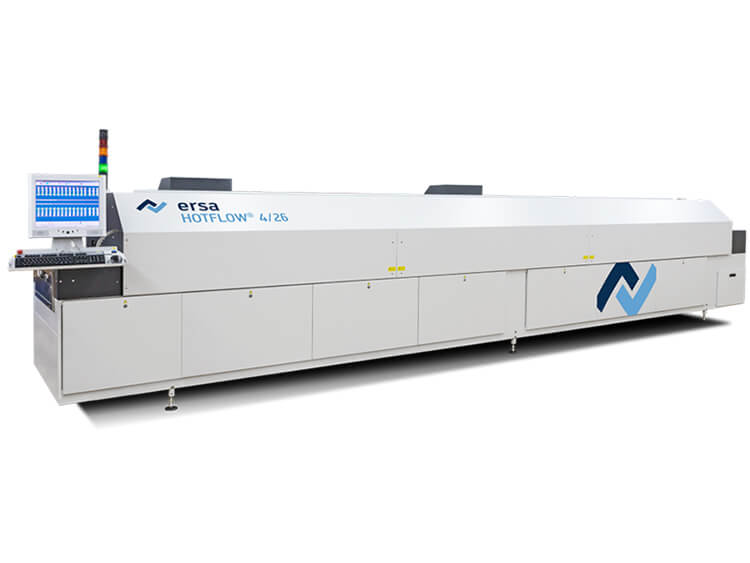

Ersa HOTFLOW 4/26 Reflow Oven

The Ersa HOTFLOW 4/26 reflow system is of robust design and manufactured entirely from steel, welded air-tight, powder coated and with interior electric cabinet and a PC operating terminal. Features include the motorized hood opening, quick-change convection heater cassettes, multi-level process gas cleaning and a powerful and effective cooling zone.

Through Put

352PCB/hour

Heating Zones

26 zones

Solder Peak zones

3 zones

Cooling zones

4 zones

Power

400 V / 3 / N / PE - 50 Hz / 60 Hz

Compressed air

Yes

Min. PCB length

50 mm

Min. PCB width

50 mm

Max. PCB length

Not applicable mm

Max. PCB width

560 mm

Weight

2800KG

Dimension

7100x1410x1500mm

Conveyor system
Working width: 45-580 mm automatically infinitely adjustable
Clear passing height: +25 (35)/-37 mm
Centre support, automatically infinitely adjustable
Conveyor speed: 20-200 cm/min
Pin-and-chain conveyor with 3, 4 or 5 mm pins
Process zone
Process length: 4,790 mm
Heated length: 3,650 mm
Cooling length: 1,840 mm
Heating system
Up to 26 convections heating cassettes
(Preheat zone up to 26 cassettes, reflow zone up to 6 cassettes)
Volumetric flow rate each module, adjustable up to 500 m3/h
Rated power each module: 3.3 kW
Cooling
Up to 4 level cooling zone with water back cooling
Electrical data
400 V, 3 Phase, N, Ground, 50/60 Hz
Continuous output during operation: appr. 9-15 kW
Exhaust
Extraction capacity 2 stacks each 400 m3/h, monitored

Options:

Multi-track conveyor system with separate drives each track
Connectable center supports
Inert atmosphere feature, available with rest-oxygen monitoring and control
Metering of N2 consumption
Power-cooling with 3 convection modules and "on the fly" process gas cleaning
Emergency power supply
Ersa Process Control (EPC)
Auto Profiler
Energy consumption computation
Quick profile change

Keywords:

SMT Reflow Oven, Nitrogen Reflow Oven, Dual Lane Reflow Oven, Vertical Reflow Oven, Vacuum SMT Reflow Oven, Lead free SMT Reflow Oven, Reflow Oven Manufacturer, LED Reflow Oven, China Reflow Oven.
