  • PCB magazine Loader

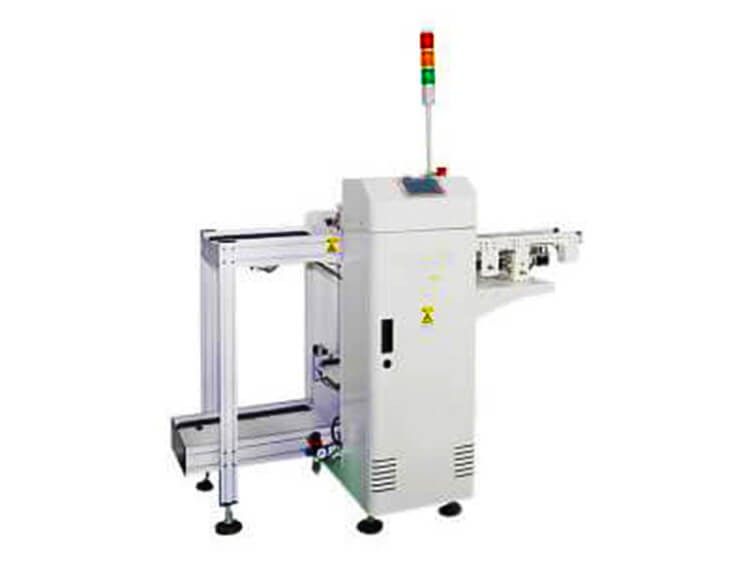

PCB magazine Loader

PCB magazine Loader

  • Demensions:500 x 800 x 1160mm
  • PCB size: 50x50 - 400x350mm
  • SMEMA compliant
  • Width adjustment automatically
  • Product description: PCB magazine Loader for LED Production Line SMT Assembly Line, used between 2 SMT machines, SMEMA interface
  • INQUIRY

PCB magazine Loader

Features:


PCB magazine Loader

Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

Main functions and Parameter

Model#

Automatic Loader

Item

Name

Description

1

Automatic Loader

Dimensions: 1450(L)×680(W)×1650(H)mm

Special Aluminum alloy guide rails and rubber belt

3 Magazine lifting with screw rod by 90WSPG electric-brake motor

4 Pneumatic PCB clamping structure

5 Magazine dimensions: 300(W)×340(L)×570(H)mm

6 PCB size: 60(W)×60(L)mm--250(W)×300(L)mm

7 Direction: L-R/ R-L

8 Adjustable Lifting distance:10,20,30,40 and 50mm

9 Programmable Siemens PLC and controller

10 PCB Automatic loading to conveyor

11 Touch Panel controlled interface/Buttons interface

12 Working power 0.25KW

13 Power Source: 220v 50HZ

14 Air Source: 4-6MPa

Keywords:

SMT Peripheral Equipment, PCB Loader, PCB Unloader, SMT PCB Conveyor, SMT PCB Cleaning Machine, DIP Insert Line, SMT NG/OK Unloader, SMT Shuttle Conveyor.
