KIC start Thermal Profiler with 6 Channels for Reflow Oven

KIC start Thermal Profiler with 6 Channels for Reflow Oven

  • 6 channels
  • KIC start Thermal Profiler
  • usage: reflow oven thermal profiler
  • Product description: KIC start Thermal Profiler with 6 Channels for Reflow Oven
  • INQUIRY

KIC start Thermal Profiler with 6 Channels for reflow oven

Products description



Affordable Thermal Profiler
Exceptional Value
The KICstart² thermal profiler utilizes core technologies developed by KIC, the world’s premier thermal profiling company, and is supported by KIC’s worldwide organization. Packaging these innovative technologies into a low-cost system, the KICstart² is an ideal cost effective thermal profiler.

Ease of Use
The KICstart² profiler has everything you need to quickly acquire an accurate profile, without complicated features that can slow you down. For applications where all you want is your product’s thermal profile, immediately with no fuss, the KICstart² is for you. The patented design concept automatically identifies the location of each oven heating zone, so no or few measurements are required. This design automatically corrects for different TC locations on the part, aligning them for improved profile graph viewing. Production down time is reduced when using the Manual Prediction software which enables the process engineer an instant “trial and error” capability when searching for more suitable oven recipes. The profiling data is automatically transferred to a PC when plugging in the USB cable. With its easy to use and intuitive software, new personnel can be trained in record time.

Instant Process Analysis
Once your profile has completed, the KICstart² automatically analyzes your process using the Process Window Index (PWI). The PWI is a single number that measures how well your profile fits within your product’s thermal process window (See the Process Window Index data sheet for details). The PWI provides an instant and objective conclusion whether your product profile is in spec, eliminating guesswork and opinion from process analysis. This helps you ensure that all your products on all your lines are manufactured with measurable, consistent quality.

Reliable and Robust Thermal Profiler
The superior accuracy and reliability of the KICstart² is nothing less than you would expect from KIC’s award winning product line. The KICstart² is a six thermocouple datalogger unit that utilizes solid state technology designed to withstand the daily or weekly thermal cycles for years to come, for both lead- free and leaded assemblies.

Accuracy

± 0.5°C

Resolution

Variable 0.3 to 0.1°C

Internal Operating Temp:

0°C to 105°C

Sample Rate:

0.1 to 10 readings/sec

Data Points:

45,000

PC Connection:

USB 2.0 (Std-A/Mini-B)

Power Requirements:

9V alkaline battery

Thermocouple Compatibility

6 Channel Unit:

Type K, Standard

Temperature Range:

-150°C to 1050°C

Dimensions (LxWxH):

205mm x 66mm x 20mm

Thermal Shield: See Temperature Tolerance Table below for specifications.

Profiling Reduced to a Single Number

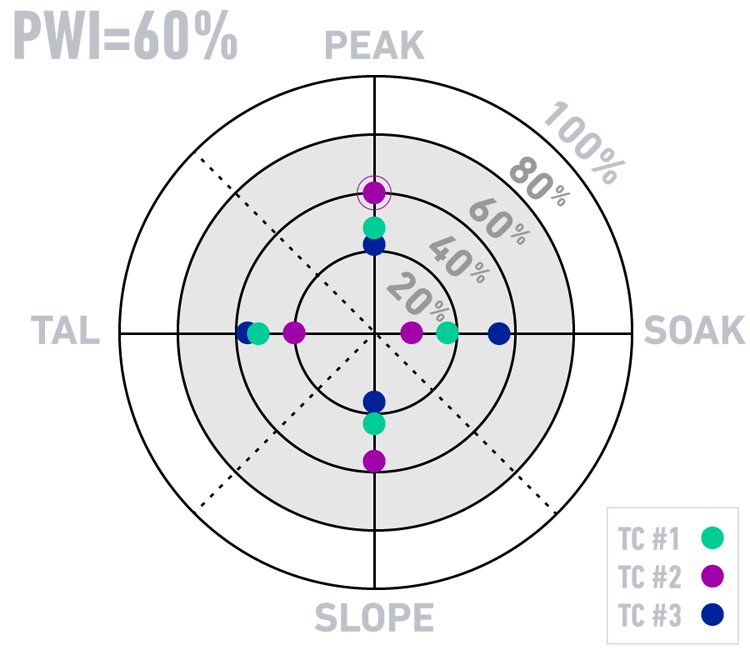

The PWI measures the profile’s fit to the process window in a mathematical and objective manner by using a single number. This aids in optimizing the process by comparing and ranking alternative profiles in terms of their fit to the available process window. The lower the PWI, the more efficient and stable the process! (See the PWI data sheet for a detailed explanation)
