  • JUKI Visual Inspection Machine AOI/SPI RV-1

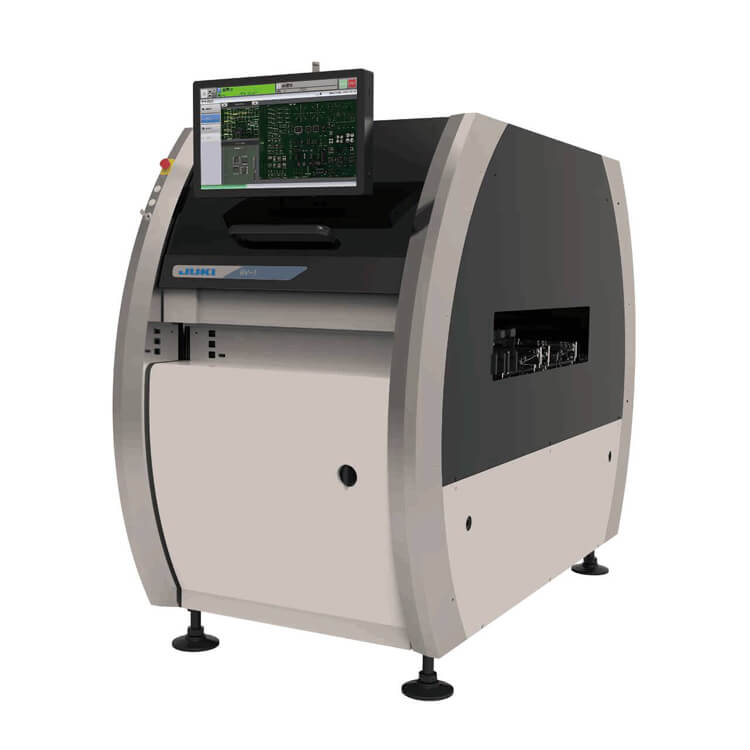

JUKI Visual Inspection Machine AOI/SPI RV-1

JUKI Visual Inspection Machine AOI/SPI RV-1

  • Frame size:750mm x 750mm
  • Board size:610mm x 510mm
  • Dimension:​W1,310mm x D1,470mm x H1,530mm
  • weight:1,000kg
  • Product description: JUKI Visual Inspection Machine AOI/SPI RV-1, Frame size:750mm x 750mm, Board size:610mm x 510mm, Dimension:​W1,310mm x D1,470mm x H1,530mm, weight:1,000kg

JUKI Visual Inspection Machine AOI/SPI RV-1


JUKI Visual Inspection Machine AOI/SPI RV-1

Clear Vision Capturing System
Worlds top-class high performance
Inspection speed = 0.14 sec/ frame
■   Easy programming
■   CCC ( Central Confirmation Control) *
■   SPC ( Statistical Process Control) *
■   Supports 3D inspection *

Model name


PWB size

50mmx50mm - 510mmx300mm ( Dual lane )
50mmx50mm - 510mmx590mm ( Single lane )


0402/0603 ( metric ), Cylindrical chip, tantalum capacitor, transistor, SOP/QFP, etc.

Inspection speed

15μm ( Standard resloution ),10μm ( High resolution)


Omission, offset, polarity, reversed, no-solder,bridge, amount of solder, foreign material,etc.

Power supply

AC 3-ph 200-230V 2.0kVA / 0.49MPa 10Nl/min





Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
