  • In-Circuit Tester TRI ICT TR8100LV
In-Circuit Tester TRI ICT TR8100LV

In-Circuit Tester TRI ICT TR8100LV

  • Weight: 390 kg
  • Dimension: 1150 x 850 x 800 mm
  • Product description: In-Circuit Tester TRI ICT TR8100LV, Weight: 390 kg, Dimension: 1150 x 850 x 800 mm

In-Circuit Tester TRI ICT TR8100LV

Product Specification

In-Circuit Tester TRI ICT TR8100LV

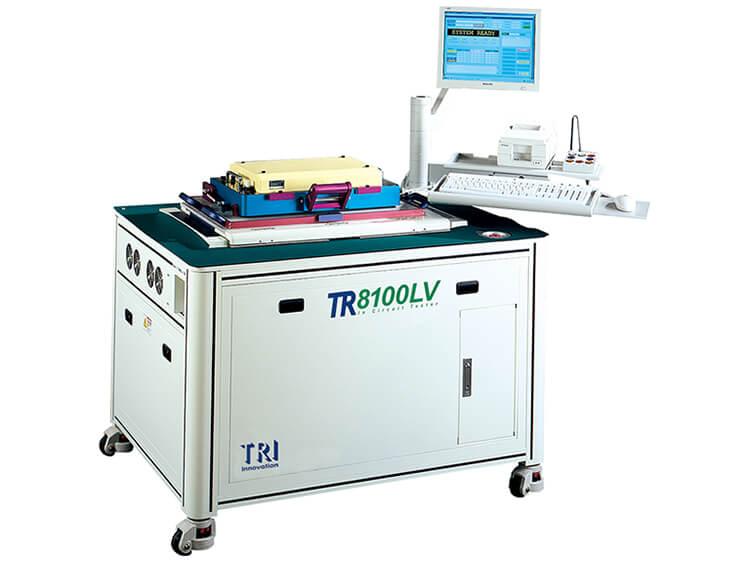

Designed for testing large and complex PCBAs, the TR8100LV is TRI's top-of-the-line board test system targeting the low-voltage testing market. TR8100LV's vacuum system ensures full pin contact and with up to 3,584 pin digital MUX-free architecture, the system allows for faster and simpler testing of large pin-count devices and fast program development.

• Digital 1:1 driver/receiver per pin architecture design
• High fault coverage test solution with vacuum fixture
• Low voltage device testing and rapid test speed
• Friendly UI with fast and easy program development

Tester Specifications

Analog/hybrid test points

TR8100LV: 3584

TR8100LLV: 5632

Operating System

Microsoft® Windows compatible PC, Windows 10

Fixture Type

Offline press or vacuum type fixture

Standard Testing Components

Analog Test Hardware

6-wire measurement switching matrix

Programmable AC/DC/DC High voltage and current sources

AC/DC voltage, DC current measurement, frequency

Component R/L/C measurement

Synthesized Arbitrary Waveform Generator

TestJet vectorless open circuit detection

Digital Testing

Non-multiplexing 1:1 per pin architecture with independent per-pin level setting

DUT power supplies: 5 V@5 A, 3.3 V@5 A, 12 V@5A, 0.2~20 V@3 A and -3~-20 V@3 A

On-board Flash, EEPROM, MAC programming

Optional Components

Analog Hardware

Fixture Conversion Kits for Teradyne, GenRad

Digital Testing

Programmable DUT power supplies: 75 V / 8 A,  200W maximum output power

Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test

Yield Management System

YMS 4.0



TR8100LV: 1150 x 850 x 800 mm

TR8100LLV: 1550 x 850 x 800 mm


TR8100LV: 390 kg

TR8100LLV: 450 kg
