  • In-Circuit Tester TRI ICT TR5001 INLINE
In-Circuit Tester TRI ICT TR5001 INLINE

In-Circuit Tester TRI ICT TR5001 INLINE

  • Max PCB:450 x 300 mm
  • Weight: 500 kg
  • Dimension:900 x 900 x 1645 mm
  • Product description: In-Circuit Tester TRI ICT TR5001 INLINE, Max PCB:450 x 300 mm, Weight: 500 kg, Dimension:900 x 900 x 1645 mm

In-Circuit Tester TRI ICT TR5001 INLINE

Product Specification

In-Circuit Tester TRI ICT TR5001 INLINE

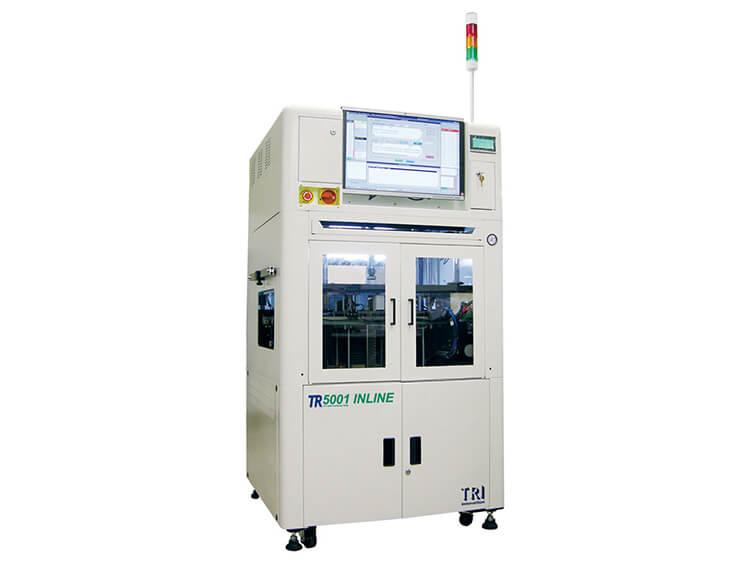

Optimized for inline integration, this SMEMA-compatible ICT is designed as an expandable platform for testing PCBAs. The TR5001 IN LINE provides an economical, customizable solution that can fully meet testing requirements of most customers. TR5001 IN LINEincorporates M‌DA with selectable ICT and Functional test capabilities that cut production line staff costs, save testing time and increase productivity.

• Modular upgrade options from MDA to ICT and functional test
• SMEMA compatible inline high fault coverage test solution
• Limited access solution and functional test expansion using PXI modules
• Friendly UI with fast and easy program development

Tester Specifications

Analog/hybrid test points

3200 analog or maximum digital test points: 1600

Operating System

Microsoft® Windows 10

Fixture Type

Inline with long lifespan Quick Disconnection Interface

Standard Testing Components

Analog Test Hardware

6-wire measurement switching matrix

Measures voltage, current and frequency

Component R/L/C/D measurement

60 V high voltage current source for LED strip testing

Optional Components

Analog Hardware

TestJet vectorless open circuit detection

Arbitrary Waveform Generator

Digital Testing

Non-multiplexing 1:1 per pin architecture with independent per-pin level setting

DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A

Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power

Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test

On-board Flash, EEPROM, MAC programming

Yield Management System

YMS 4.0

Board Handling

Min PCB Size

70 x 70 mm

Max PCB Size

450 x 300 mm

PCB Thickness

0.6 - 5 mm



900 x 900 x 1645 mm

Note: not including signal tower, height: 515 mm


500 kg
