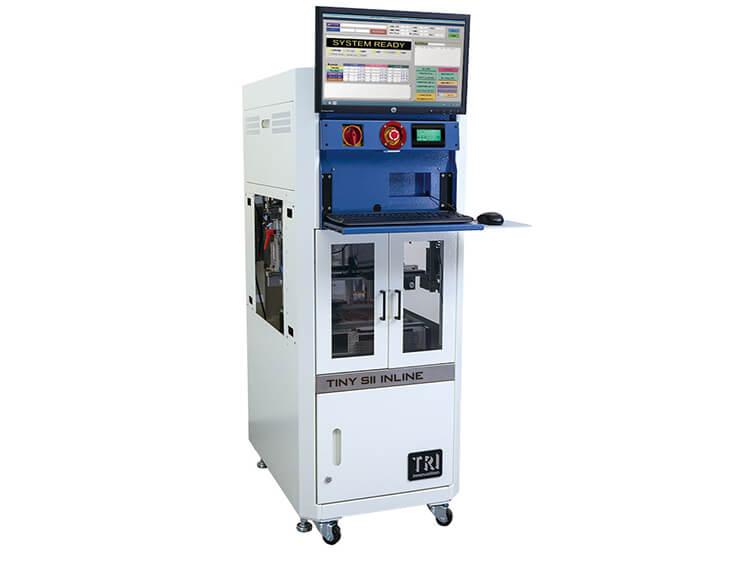

In-Circuit Tester TRI ICT TINY SII INLINE

Max PCB Size: 330 x 250 mm
Weight: 340 kg
Dimension: 600 x 936 x 1800 mm
Product description: In-Circuit Tester TRI ICT TINY SII INLINE, Max PCB Size: 330 x 250 mm, Weight: 340 kg, Dimension: 600 x 936 x 1800 mm
INQUIRY

In-Circuit Tester TRI ICT TINY SII INLINE

Product Specification

TINY SII INLINE is a cost effective, flexible automated testing platform designed for ICT testing on small-sized boards with up to 640 testing points. The fully electrical SMEMA-compatible platform features a minimal footprint and full TR5001T SII TINY ICT capability.

• Full featured inline testing platform
• Designed for TRI TR5001T SII TINY ICT tester
• Minimal footprint with SMEMA integration
• Fully electrical design without compressed air
• Up to 640 analog testing points

Tester Specifications
Analog/hybrid test points	640 analog test points
Operating System	Microsoft® Windows compatible PC with USB, Windows 10
Fixture Type	Inline/Manual Insertion
Standard Testing Components
Analog Test Hardware	• 6-wire measurement switching matrix
	• Measures voltage, current and frequency
	• Component R/L/C/D measurement
	• 60 V high voltage current source for LED strip testing
Optional Components
Analog Hardware	• TestJet vectorless open circuit detection
Analog Hardware	• Sine Wave Generator
Digital Testing	• Boundary Scan
	• Data Acquisition and Audio analyzer modules
	• Enhanced Digital Test Module
Yield Management System	YMS 4.0
Board Handling
Min PCB Size	70 x 70 mm
Max PCB Size	330 x 250 mm
PCB Thickness	0.6 - 5 mm
Dimensions
WxDxH	600 x 936 x 1800 mm
WxDxH	Note: not including signal tower, height: 295 mm
Weight	340 kg
