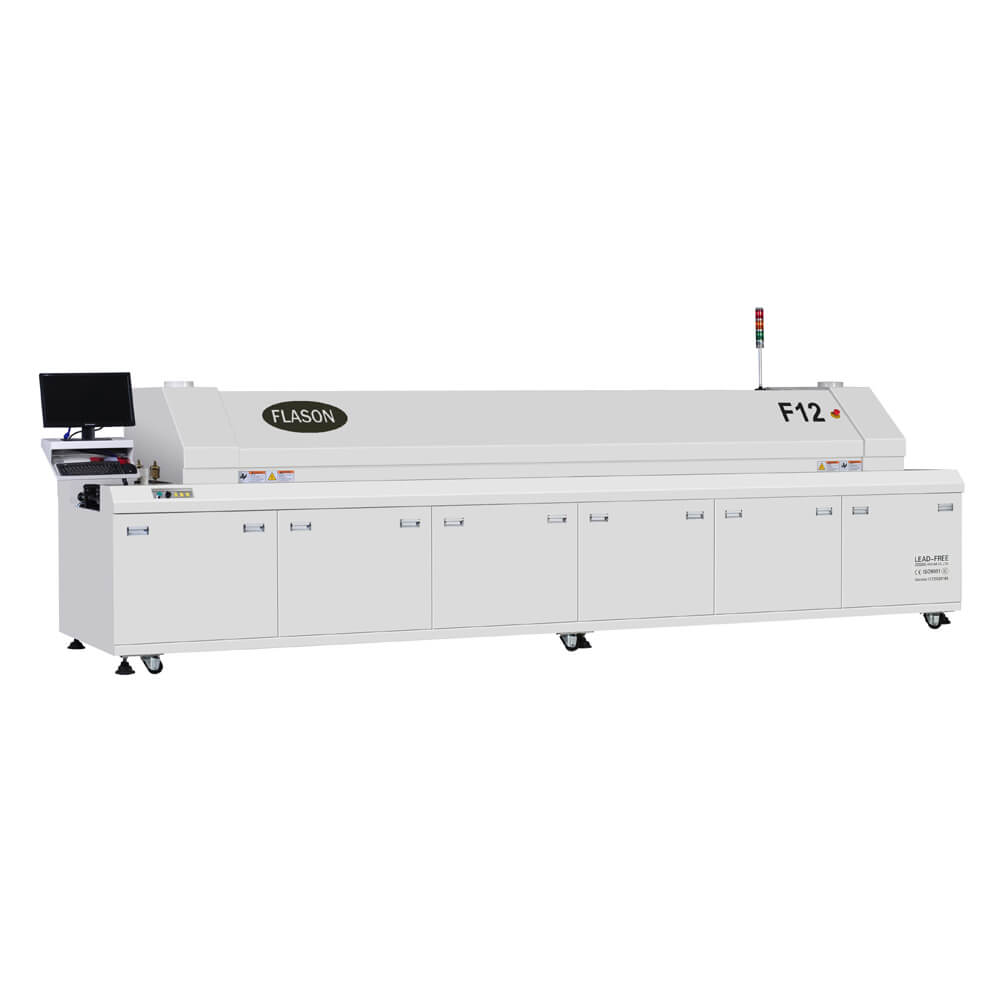

Hot Air Lead Free Reflow Oven F12

Max PCB: 400mm
Heating zones: 12
weight: 2600kg
dimension: 6100*1320*1490mm
Product description: Hot Air Lead Free Reflow Oven F12, Max PCB: 400mm, Heating zones: 12, weight: 2600kg, dimension: 6100*1320*1490mm
INQUIRY

Hot Air Lead Free Reflow Oven F12

Introduction:

1. Well-known brand computer with Siemens PLC intelligent control system, high precision temperature control in ± 1-2 ℃ (if the computer has gone failure accidentally, it can realize off-line mode and not affecting production) and to ensure that the control system is stable and reliable;

2. Windows XP operating platform with user friendly operation.

3. In order to ensure safety and reliability, hood opening in automatically.

4. Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which ensure smooth PCB transport. Synchronous guide transmission mechanism and SMEMA connection ensure that guide adjustable wide precision and high service life.

5. Automatic controlled chain lubrication system..

6. PID closed loop control for all heating zones independently, sequential start up to reduce power consumption)

7. Mesh/chain transmission controlled by computer, which can fulfil different kinds of PCB production criteria.

8. Visual & Audio Alarm for abnormal condition.

9. With leakage protector, ensure safety protection for operating personnel and control system.

10. The built-in UPS and automatic delay shutdown system guarantee power failure or overheat won’t harm the PCB and machine.

11. The German ERSA world leading tiny circulation heating mode, and the upper and lower independent air tiny circulation system, temperature uniformity and thermal compensation high efficiency, high efficient supercharged accelerated air duct, greatly improve the circulating hot air flow, heat up temperature quickly (about twenty minutes), thermal compensation for high efficiency, high temperature welding and curing;

12. The upper and lower every temperature zone with independent temperature inductive sensor, real-time monitoring and compensation every temperature zone balance;

13. Have password administration of the operating system, to prevent the irrelevant personnel changes to the process parameters, operation records management traceability process parameters modification, improve the management convenient. Capable for saving user existing parameters and profile printout;

14. Integrated control window, the computer switch, test or printout profile and data transmission are convenient, humanized design. Equipped with three-channel temperature profiling system, may at any time to check soldering objects by the actual temperature profile (without 3^rd party profiler);

15. From international standard quick cooling system, magnifying glass type efficient rapid cooling, cooling speed can reach 3.5 ~ 6℃/ SEC, management is very convenient; External chiller unit, ensure that spot crystal effect (Option selected items, the standard configuration for forced natural air cooling).

Specification:

Model	Flason F12
Heating System	Number of heating zones	Top 12/ bottom 12
	Number of cooling zones	2(top 1, bottom 1)
	Heating passage	4500mm
	Heating style	Hot air
	Cooling style	Forced air cooling
	Exhaust Volume	10m³/min * 2 vanes
Conveyor System	Max. Width of PCB	400mm
	Mesh belt width	450mm
	Conveyor Direction		L-R(option: R-L)
	Process height		900±20mm
	Conveyor type		Mesh and chain
	Range of rail width		50-400mm
	Conveyor speed		0-2000mm/min
	Auto/manual Lubrication		Standard
	Fixed track		Front track fixed(option: rear track fixed)
	Product clearance		Top and bottom 25mm
Control system	Power supply		5 line 3 phase 380V 50/60HZ
	Total power		68KW
	Startup power		60KW
	Steady consumption		12KW
	Ramp up time		20 mins
	Temp. setting range		From room temp. To 300℃
	Temp. control method		PID close loop control & SSR driving
	Temp. control precision		±1℃
	Temp. deviation on PCB		±2℃
	Data storage		Process Data and status storage(80GB)
	Nozzle plate		Aluminum Alloy Plate
	Abnormal Alarm		Abnormal temperature (overtemp/low temperature)
	Board dropped alarm		Tower light: Amber-warming,Green-normal, Red-abnormal
General	Dimension(LWH)		610013201490mm
	Weight		2600kg
	Color		Computer gray
