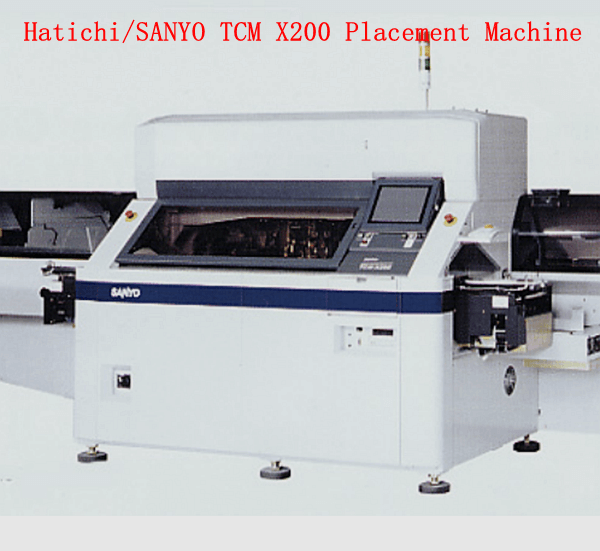

Hitachi TCM X200 Pick and Place Machine

Hitachi TCM X200 Pick and Place Machine

  • Hitachi TCM X200 Pick and Place Machine
  • Mounting Speed:14400CPH
  • size:W 6,00 * D 2,00 * H 2,00,
  • Weight: 4,400 Kg
  • Product description: Hitachi TCM X200 Pick and Place Machine , Mounting Speed:14400CPH, size:W 6,00 * D 2,00 * H 2,00,Weight: 4,400 Kg

Hitachi TCM X200 Pick and Place Machine


Hitachi TCM X200 Pick and Place Machine

Hitachi TCM X200 SMT machine mechanical structure is simple, cast a frame made to ensure durability

and stability, circuit control department is not complicated, easy maintenance. DOS operating system,

the menu is relatively simple, easy to operate, a working head, 8 suction nozzle, the size of the material

can be posted, you can install a precision camera to improve placement accuracy. The theoretical speed

of 14400 points per hour, the actual production capacity of about 8000, suitable for small batch production.

Hitachi TCM X200 parameters
Hitachi high-speed placement machine TCM X200
PCB size: LL size (X457mm / Y381mm)
Available components range: 0201-32 / 32mmQFP
The number of stations: 160 (loaded double card rack can hit 208 kinds of material)
Theoretical chip speed: 0.075 sec / piece
Mounting accuracy: ± 0.05mm
Size and weight: W 6,00 * D 2,00 * H 2,00,
Weight: 4,400 Kg
Power 200V, 7KVA
Air source: 100L / min
