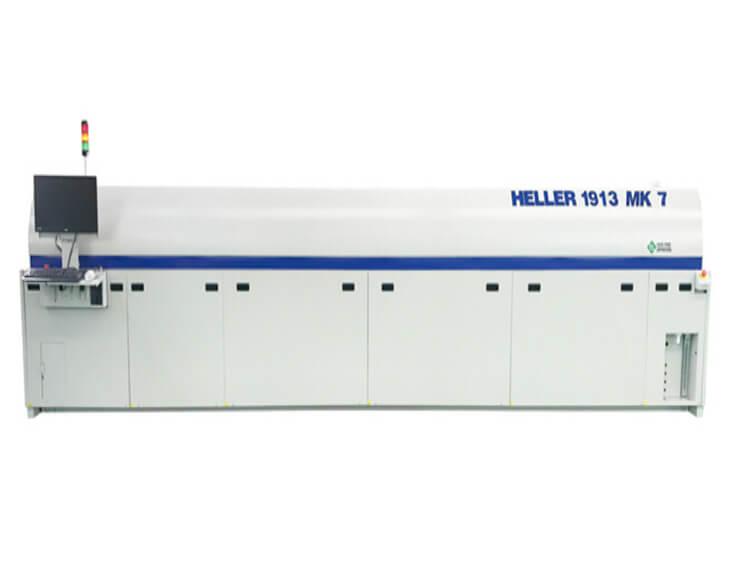

Heller 1913 MK7 SMT Reflow Oven
Products description
Heller 1913 MK7 SMT Reflow Oven
The 1913 MK7 is a high volume reflow oven with 13 heated zones and belt speeds up to 1.88m/min. The 1913MK7 offers the lowest delta T’s, reduced nitrogen and electrical consumption and advanced flux management options.
Built-in Thermal Monitoring
Nitrogen Capable to < 100 ppm
Energy Management System
Virtually No Maintenance
10” Wide Heater Modules
Model |
1913MK7 (Air) |
1913MK7 (Nitrogen) |
Electric Supply |
||
Power Input (3 Phase) Standard |
480 volts |
480 volts |
Breaker Size |
100 amps @ 480v |
100 amps @ 480v |
kW |
9 - 15 Continuous |
9 - 15 Continuous |
Typical Run Current |
25 - 35 amps @ 480v |
25 - 35 amps @ 480v |
Optional Power Inputs Available |
208/240/380/400/415/440/480 VAC |
208/240/380/400/415/440/480 VAC |
Frequency |
50/60 Hz |
50/60 Hz |
Sequential Zone Turn On |
S |
S |
Dimensions |
||
Overall Oven Dimensions |
232" (590cm) L x 60” (152cm) W x |
232" (590cm) L x 60” (152cm) W x |
Typical Net Weight |
4898 lbs. (2220 kg) |
5560 lbs. (2520 kg) |
Typical Shipping Weight |
6266 lbs. (2840 kg) |
6928 lbs. (3140 kg) |
Typical Shipping Dimension |
620 x 185 x 185 cm |
620 x 185 x 185 cm |
Computer Control |
||
AMD or Intel Based Computer |
S |
S |
Flat Screen Monitor w/Mount |
S |
S |
Windows Operating System |
Windows 10 Home |
Windows 10 Home |
Auto Start Software |
S |
S |
Data Logging |
S |
S |
Password Protection |
S |
S |
LAN Networking |
O |
O |
Inert Atmosphere |
||
Minimum PPM Oxygen |
- |
10-25 PPM* |
Waterless Cooling w/ Flux |
||
Separation System |
- |
O |
Nitrogen On/Off Valve |
- |
O |
Oxygen Monitoring System |
- |
O |
Nitrogen Standby System |
- |
O |
Typical Nitrogen Consumption |
- |
500 - 700 SCFH ** |
Additional Features |
||
KIC Profiling Software |
S |
S |
Signal Light Tower |
S |
S |
Powered Hood Lift |
S |
S |
Five (5)Thermocouple Profiling |
S |
S |
Redundant Alarm Sensors |
O |
O |
Intelligent Exhaust System |
O |
O |
KIC Profiler / ECD Profiler |
O |
O |
Center Board Support |
O |
O |
Board Drop Sensor |
O |
O |
Board Counter |
O |
O |
Bar Code Reader |
O |
O |
Custom Paint & Decal |
O |
O |
Battery Backup for Conveyor and PC |
O |
O |
GEM/SECS Interfacing |
O |
O |
Mesh Belt Conveyor |
||
Height From Floor |
36.6" + 2.4" (93 cm + 6 cm) |
36.6" + 2.4" (93 cm + 6 cm) |
Maximum PCB Width |
22" (56 cm) |
22" (56 cm) |
Space Required Between PCB's |
0.0" (0.0 cm) |
0.0" (0.0 cm) |
Conveyor Length On-Load |
18" (46 cm) * |
3" (7.5 cm) * |
Conveyor Length Off-Load |
18" (46 cm) * |
3" (7.5 cm) * |
Heated Tunnel Length |
140" (355 cm) |
140" (355 cm) |
Process Clearance Above Mesh Belt |
2.3" (5.8 cm) |
2.3" (5.8 cm) |
Mesh Belt Pitch |
0.5" (1.27 cm) |
0.5" (1.27 cm) |
Maximum Conveyor Speed |
74"/Min (188 cm/min.) |
74"/Min (188 cm/min.) |
Conveyor Direction Left to Right |
S |
S |
Conveyor Direction Right to Left |
O |
O |
Conveyor Speed Control |
Closed Loop |
Closed Loop |
Edge Hold Conveyor System Option |
||
Height from Floor – Standard |
37.8" ±2.4" (96 cm ± 6 cm) |
37.8" ±2.4" (96 cm ± 6 cm) |
Height from Floor – Optional |
35.4" ± 2.4" |
35.4" ± 2.4" |
Clearance Above & Below Conveyor Pins |
1.15" (2.9 cm) |
1.15" (2.9 cm) |
Length of PCB Support Pins |
.187" (4.75 mm) |
.187" (4.75 mm) |
3 mm long support pins |
O |
O |
Minimum/Maximum Board Width |
2" – 22" (5 – 56 cm) |
2" – 22" (5 – 56 cm) |
Power Width Adjustment |
S |
S |
Computer Controlled Width Adjust |
O |
O |
Auto Lubrication System |
S |
S |
Forced Convection Zones |
||
Top & Bottom |
13 |
13 |
Heater Type |
Instant response open coil |
Instant response open coil |
Heater Material |
Nichrome |
Nichrome |
Profile Change Time |
5 – 15 minutes |
5 - 15 minutes |
Temperature Control |
||
Accuracy of Temperature Controller |
± .1°C |
± .1°C |
Cross-Belt Temperature Tolerance |
±3.0°C |
±3.0°C |
Heater Wattage Per Zone |
5400 w*** |
5400 w*** |
Temperature Range Standard |
60-350°C |
60-350°C |
High Temperature Up to 450°C |
O |
O |
Cooling Systems |
||
Number of Cooling Zones Standard |
3 |
3 |
Cooling zone Length |
107cm |
115cm |
Additional Cooling Zones |
O |
O |
Water Cooling |
- |
O |
Notes: |
S = Standard, O = Optional. |
