Hanwha SM482 Plus SMT Assembly Line

Hanwha SM482 Plus SMT Assembly Line

  • SM482 Plus SMT Assembly Line
  • SMT PCB production
  • Full Automatic Assembly line
  • Speed:30000CPH
  • Product description: Hanwha SM482 Plus SMT Assembly Line, Usage: PCB production, Full Automatic Assembly line, Speed:30000CPH
  • INQUIRY

Hanwha SM482 Plus SMT Assembly Line

Products description:

Hanwha SM482 Plus SMT Assembly Line

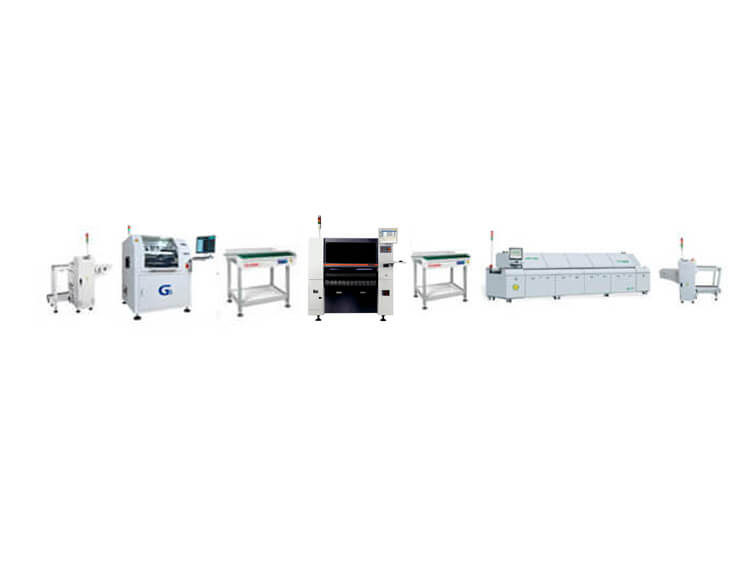

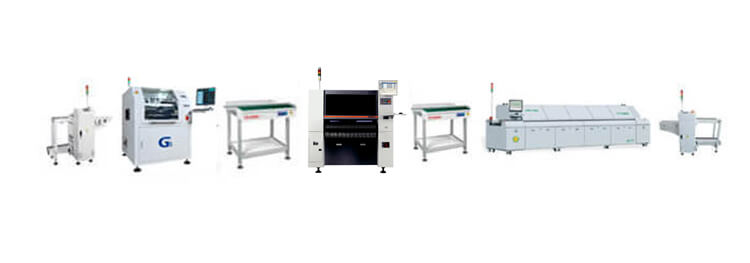

Hanwha SM482 Plus SMT Assembly Line, Usage: PCB production, Full Automatic Assembly line, Speed:30000CPH, it's with Automatic PCB Loader, Automatic SMT stencil Printer, Automatic Pick and place machine SM481 plus, and SMT reflow oven, PCB unloader.

1. PCB loader

Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

2. SMT stencil Printer GKG G5

G5 is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~400x340mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components

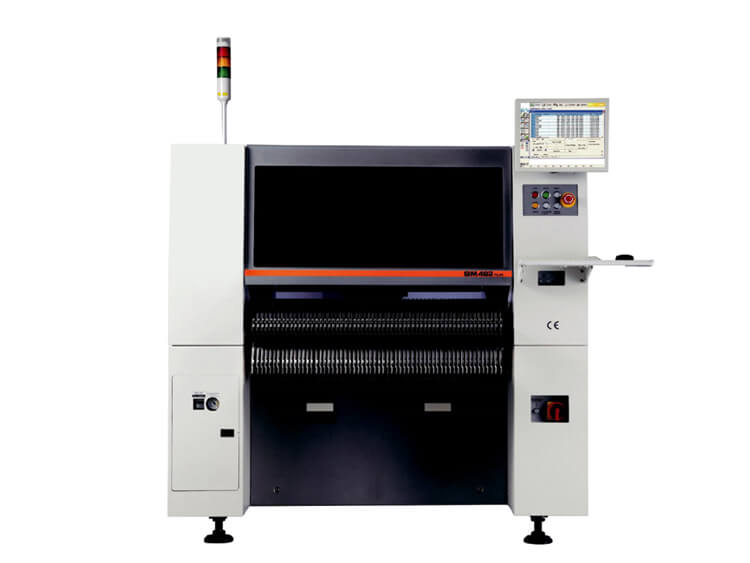

3.Hanwha SM482 PLUS Pick and Place Machine


1. Applicability to odd-shaped parts is reinforced.
2. Equipped with a head with one gantry and six spindles
3. Placement accuracy correction system(head offset,C/V offset etc.)
4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."
5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."
6. Placement Rate:30,000CPH(Optimum)
7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)
8. Option: 50(L)*40(W)~760(L)*460(W)
9. PCB Thickness:0.38mm~4.2mm
10. External Dimension(mm): 1650(L)*1680(D)*1530(H)
11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)

5. high production Capacity Reflow oven KTR 1000.

1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.

2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.

3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.

4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.

5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.

6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.

6.Automatic PCB Unloader


1)Machine Size(L*W*H):L2300*W980*H1200mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length pcb conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)500*(W)390mm

8)Direction:R-L/L-R

9)Adjustable Lifting distance:10,20,30,and 40mm

10)Programmable Mitsubishi PLC and controller

11)PCB Automatic loading to conveyor

Keywords:

SMT Assembly line, PCB Assembly line, JUKI SMT Assembly Line, Samsung SMT Assembly Line, Hanwha SMT Assembly Line, Panasonic SMT Assembly Line, FUJI SMT Assembly Line, Yamaha SMT Assembly Line.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow OvenWave Soldering MachinePick and Place MachineSMT Stencil PrinterSMT AOI SPI MachineSMT Reflow OvenSMT Peripheral EquipmentSMT Assembly lineSMT Spare Parts  etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
