Hanwha SM481 Plus SMT Assembly Line

Products description:

Hanwha SM481 Plus SMT Assembly Line

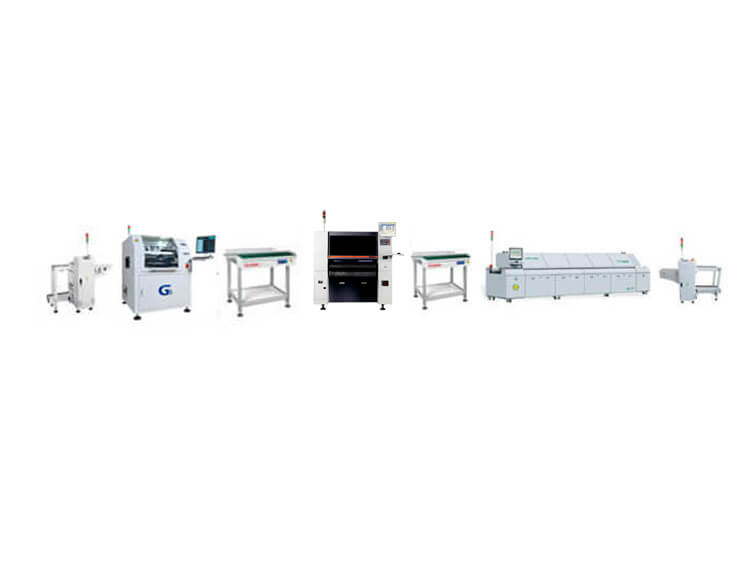

Hanwha SM481 Plus SMT Assembly Line, Usage: PCB production, Full Automatic Assembly line, Speed:40000CPH, it's with Automatic PCB Loader, Automatic SMT stencil Printer, Automatic Pick and place machine SM481 plus, and SMT reflow oven, PCB unloader.

1. PCB loader

Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

G5 is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
GKG Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size：50mm x 50mm ~400x340mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components

10 Spindles × 1 Gantry

Component available: 0402 ~ 42mm(H 15mm)
Max PCB: 460 × 400mm
Speed:40,000CPH
As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized achip placement speed of 40,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.

5. high production Capacity Reflow oven KTR 1000.

1. Reinforced main hanging bracket to guarantee there is no deforming and board jamming occurred.

2. The dual-rails conveyor is able to improve the production efficiency as well as power & cost.

3. 15% heat transferring efficiency was improved to deal with the lead free process with more complicated and larger products.

4. New cooling configuration to make the filtered or reclaimed air back to oven chamber, it reduced the thermal loss as well as get better flux reclamation.

5. User the full protection of the sealed oven design to prevent N2 and O2 from losing effectively. So the lowest concentration of N2 and O2 can be reached to 150 PPM.

6. When Concentration of oxygen is 300-800 PPM, consumption is only 20-22M3/H.

6.Automatic PCB Unloader

1)Machine Size(L*W*H):L2300*W980*H1200mm

2)Special Aluminum alloy guide rails and rubber belt

3)Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan

4)Pneumatic PCB clamping structure

5)Attach one set 0.7m length pcb conveyor

6)Magazine size(L*W*H): (L)535*(W)460*(H)565mm

7)PCB max size(L*W):(L)500*(W)390mm

8)Direction:R-L/L-R

9)Adjustable Lifting distance:10,20,30,and 40mm

10)Programmable Mitsubishi PLC and controller

11)PCB Automatic loading to conveyor
