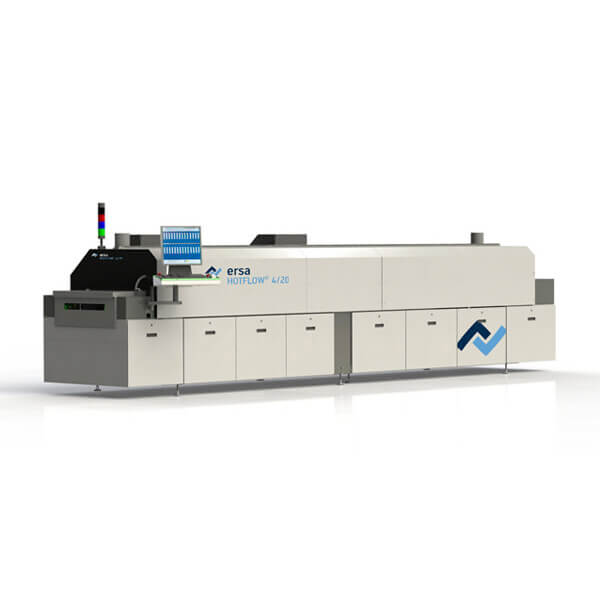

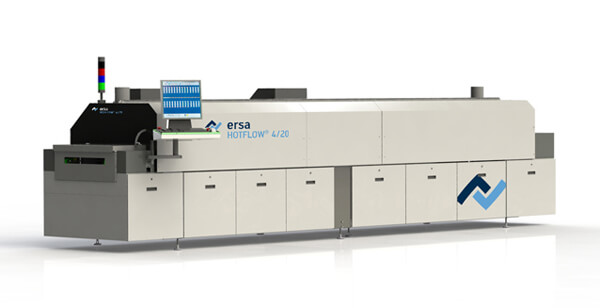

Ersa HOTFLOW 4/20 reflow oven

Products description



  • Reflow soldering system with outstanding thermal performance and an excellent power balance
  • Individually controllable process zones via energy-optimized motors
  • Multi-level controlled cooling
  • Multi-level process gas cleaning with pyrolysis
  • Rest-oxygen monitoring and control, low N2 consumption
  • Ersa Process Control software (EPC)
  • Software to generate temperature profiles
  • Multi-track conveyor systems (1-4), 1x fixed, 3x variable
  • Thermally invisible center supports
  • Low energy consumption in continuous operation
  • Patented grip conveyor system for flex boards
  • Auto Profiler to off-line and quickly generate temperature profiles


Ersa HOTFLOW 4/20 Reflow Oven

The Ersa HOTFLOW 4/20 Reflow Soldering System is of robust design and manufactured entirely from steel, welded air-tight, powder coated and with interior electric cabinet and a PC operating terminal. Features include the motorized hood opening, quick-change convection heater cassettes, multi-level process gas cleaning and a powerful and a high-performance cooling zone.


Dimensions
Length: 6,600 mm
Width: 1,410 mm
Height: 1,350 mm
Weight appr. 2,600 kg

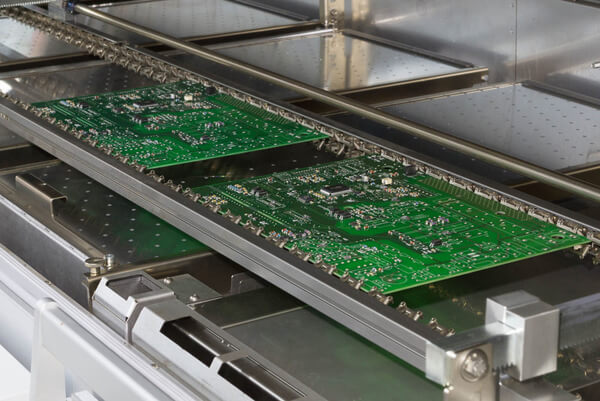

Conveyor system
Working width: 45-560 mm automatically infinitely adjustable
Clear passing height: +32/-40 mm
Center support, automatically infinitely adjustable
Conveyor speed: 20-200 cm/min
Pin-and-chain conveyor with 3 / 4 / 5 mm pin length
Process zone
Process length: 5,920 mm
Heated length: 3,805 mm
Cooling length: 2,115 mm
Heating system
Up to 20 convection heating cassettes
(Preheat zone up to 14, reflow zone 6)
Volumetric flow rate each module adjustable up to 500 m3/h
Rated power each module: 3.3 kW

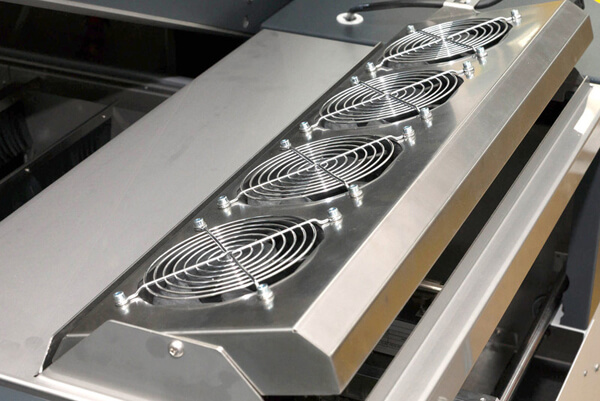

Cooling
Up to 4 levels cooling zone with water back-cooling
Electrical data
400 V, 3 Phase, N, Ground, 50/60 Hz
Continuous output during operation: appr. 10-15 kW
Exhaust
Extraction capacity 2x 300-600 m3/h with monitoring feature


Options:

  • Pin-and-chain conveyor with either 3 / 4 / 5 mm pin length
  • Pin-and-chain conveyor with low-mass center support
  • Motorized adjustment of conveyor width and center support
  • Up to 4 tracks with center support in the system (1x fixed, 3x variable)
  • Patented grip conveyor system for flex boards
  • With single track systems, the use of low mass tubular supports is possible
  • Operation with either ambient air or nitrogen
  • The cooling zone of the system can be equipped with an integrated cooling system and an external cooling aggregate
  • Cooling can be either with cooling aggregate or with local water connection
  • Multi-level condensation management system available with pyrolysis

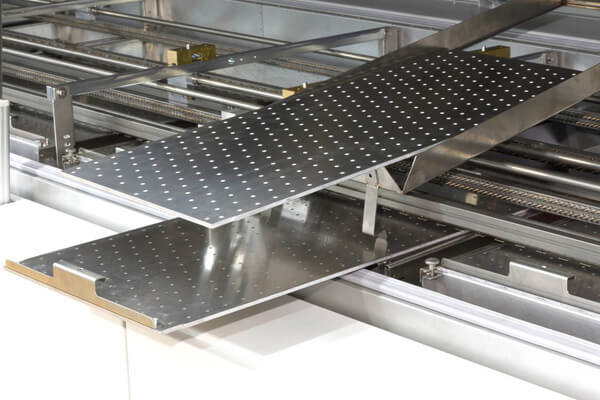

  • Heating and cooling cassettes removable without tools
  • Energy-consumption management



1.Short lead time;


2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.
