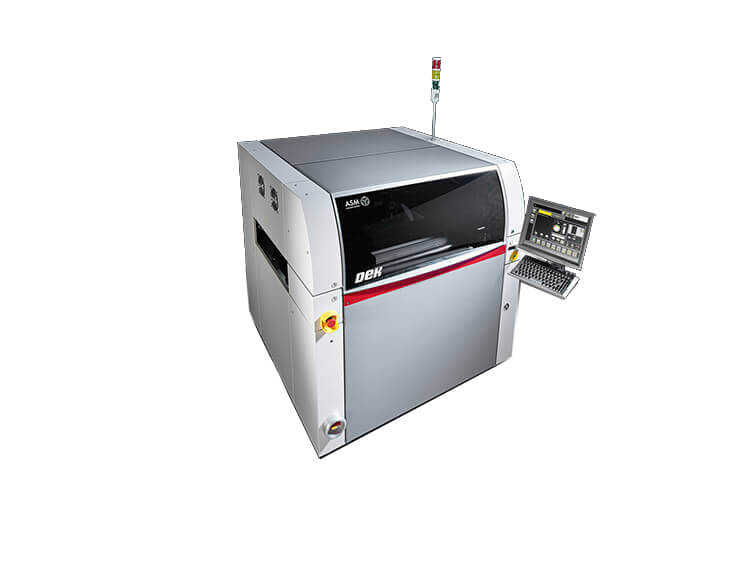

DEK NeoHorizon SMT Stencil Printer

DEK NeoHorizon SMT Stencil Printer

  • Standard cycle time: 6.5 seconds + process
  • Maximum printing surface: 510 mm (X) × 508,5 mm (Y)
  • Weight: Approx. 690 kg
  • Product description: DEK NeoHorizon SMT Stencil Printer, Standard cycle time: 6.5 seconds + process, Maximum printing surface: 510 mm (X) × 508,5 mm (Y), Weight: Approx. 690 kg
  • INQUIRY

DEK NeoHorizon SMT Stencil Printer

Specifications:

DEK NeoHorizon SMT Stencil Printer

DEK NeoHorizon
With its modular design, the latest generation of our powerful screen printers is customizable for any customer-specific or application-specific requirements. Clamping systems, conveyors, tooling, paste management, verification – the DEK NeoHorizon can be equipped and/or retrofitted with many powerful and precision-enhancing options. All this flexibility can be controlled easily and comfortably with the leading printer software: DEK Instinctiv™ V9.
Two basic printer configurations are available: The DEK NeoHorizon 03 iX with the DEK HawkEye 750 camera system, semi-automatic stencil load and the IUSC understencil cleaning system features a core cycle time of 8.0 seconds and a machine accuracy of ±20 µm @ 2 Cmk for use in high-mix environments. The DEK NeoHorizon 01 iX with its core cycle time of 6,5 seconds and enhanced machine accuracy of ±15 µm @ 2 Cmk was designed for applications with particularly high demands on quality and throughput, for example for 0201 (metric) components. This configuration is equipped with the high-resolution DEK HawkEye 1700 camera, a fully automatic stencil alignment system, and the high-end DEK Cyclone understencil cleaning system.
Back-to-back: Single-track, dual-track, and back to single-track
The innovative design of the new printer and its especially robust cover make it possible to perform all control and maintenance operations from the front of the machine. As a result, you can now position two DEK NeoHorizons back-to-back for a dual-track solution that’s smart, flexible and future-proof. The two machines can nevertheless be configured and operated independently of each other. And when the dual-track solution is no longer needed, you simply separate the two printers and use them on separate lines again. The perfect combination of flexibility and investment protection.

Technical Data:

Standard configuration

DEK NeoHorizon 01iX

DEK NeoHorizon 03iX

Machine alignment capability

± 12.5 μm @ 2.0 Cmk (6 sigma)

± 12.5 μm @ 2.0 Cmk (6 sigma)

Machine alignment accuracy

± 15 μm @ 2.0 Cmk (± 6 sigma)

± 20 μm @ 2.0 Cmk (± 6 sigma)

Process alignment accuracy

± 20 μm @ 2.0 Cpk (6 sigma)#

± 25 μm @ 2.0 Cpk (6 sigma)#

Standard cycle time

6.5 seconds + process

8 seconds + process

Maximum printing surface

510 mm (X) × 508,5 mm (Y)

User interface

Touchscreen, keyboard and trackball,
DEK Instinctiv V9 software

Camera

DEK HawkEye 1700 digital camera
with 2-way LED illumination

DEK HawkEye 750 digital camera
with 2-way LED illumination

Squeegee adjustment

Motorized with squeegee pressure feedback

Stencil loading

Automatic, incl. squeegee drip catcher

Semi-automatic,incl. squeegee drip catcher

Stencil alignment

Motorized (actuators); aligned on
X- and Y-axis and rotation

Motorized (actuators); aligned in
X- and Y-axis and rotation

DEK ProFlow

Optional

Understencil Cleaning

DEK Cyclone 300 mm/400 mm/515 mm

DEK IUSC 300 mm/400 mm/520 mm

Technical documentation

Printed documents: User manual, installation instructions, circuit diagrams.
Technical instructions and videos that explain all operating steps are preinstalled.

Compressed air supply

5-8 bar at ~5 litres/minute

Power supply

100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz

Weight

Approx. 690 kg depending on selected options

* The machine and repeat accuracy check will be conducted using production-typical process variables.  The repeat accuracy rating

comprises the printing speed, squeegee operation, table movements and camera movements.
