  • DEK Horizon 8 SMT Stencil Printer

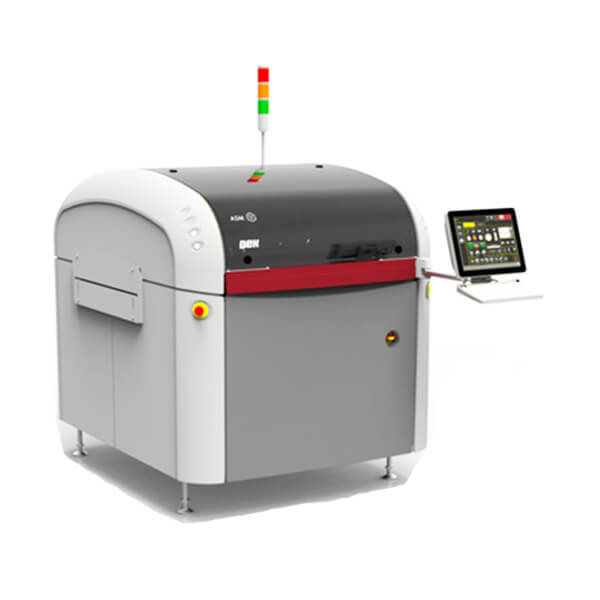

DEK Horizon 8 SMT Stencil Printer

DEK Horizon 8 SMT Stencil Printer

  • Maximum printing surface: 508mm(X) ×508mm(Y)
  • Standard cycle time: 10 seconds + process
  • Weight: Approx. 690 kg
  • Product description: DEK Horizon 8 SMT Stencil Printer, Maximum printing surface: 508mm(X) ×508mm(Y), Standard cycle time: 10 seconds + process, Weight: Approx. 690 kg
  • INQUIRY

DEK Horizon 8 SMT Stencil Printer

Specifications:

DEK Horizon 8 SMT Stencil Printer

DEK Horizon 8
DEK’s Horizon platforms offer a comprehensive array of sophisticated features as standard, including optimised printer frame technology, fast product changeover, 2 Cpk print process capability and 6-sigma production performance. The  DEK HawkEye 750 camera system, semi-automatic stencil load and the understencil cleaning system features a core cycle time of 12.0 seconds and a machine accuracy of ±25 µm @ 2 Cmk for use in high-mix environments. The 12-second core cycle timeDEK camera Instinctiv T V9 user interface ISCAN™ Intelligent Scalable Control Area Network .Full size stencil frame capacity.Horizon 08 – Best-in-class performance Features:
Process alignment capability 2 Cpk @ +/-25 microns 6-Sigma
Machine alignment capability 2 Cpk @ +/- 12.5 microns 6-Sigma

Standard configuration

DEK Horizon 08 EE

Machine alignment capability

>2.0 Cpk @ +/- 12.5µm, (±6 Sigma) *

Process Alignment Capability

>2.0 Cpk @ +/- 25µm, (±6 Sigma) *

Standard cycle time

10 seconds + process

Maximum printing surface

508 mm (X) × 508 mm (Y)

User interface

Touchscreen, keyboard and trackball, DEK Instinctiv V9 software

Camera

DEK HawkEye 1700 digital camera with 2-way LED illumination

Squeegee adjustment

Motorized with squeegee pressure feedback

Stencil loading

Automatic, incl. squeegee drip catcher

Stencil alignment

Motorized (actuators); aligned on X- and Y-axis and rotation

DEK ProFlow

Optional

Understencil Cleaning

DEK Cyclone 300 mm/400 mm/515 mm

Technical documentation

Printed documents: User manual, installation instructions, circuit diagrams.
Technical instructions and videos that explain all operating steps are preinstalled.

Compressed air supply

5-8 bar at ~5 litres/minute

Power supply

100 Volts to 240 Volts ±10 %. Single phase 50/60 Hz

Weight

Approx. 690 kg depending on selected options

* The machine and repeat accuracy check will be conducted using production-typical process variables.  The repeat accuracy rating comprises the printing speed, squeegee operation, table movements and camera movements.
