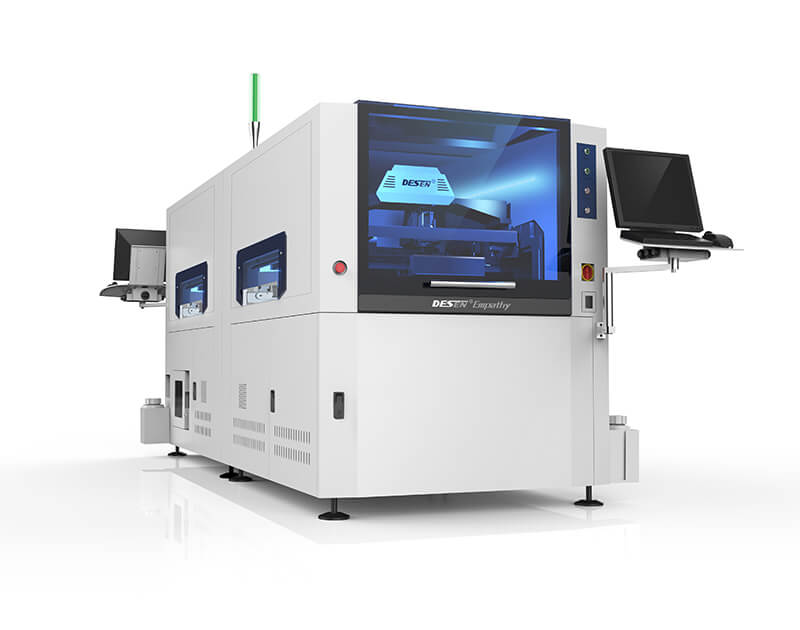

Classic Empathy SMT Stencil Printer

Classic Empathy SMT Stencil Printer

  • Max PCB:300*340mm
  • PCB weight ≤3kg
  • size:1400(L)X1540(W)X1500(H)mm
  • Weight:1400Kg
  • Product description: Classic Empathy SMT Stencil Printer Fully Automatic, Max PCB:300*340mm, PCB weight ≤3kg, size:1400(L)X1540(W)X1500(H)mm, Weight:1400Kg
  • INQUIRY

Classic Empathy SMT Stencil Printer

Products description



Empathy

The whole machine is fully controlled by servo system

Unique scraper self-adaptive system

Multi-functional image processing system

High precision UVW closed loop platform

Three-section PCB intelligent transmission system

Automatic steel mesh positioning module

Unique intelligent steel mesh cleaning system

User-friendly operation interface

Back-to-back free combination of double unit

Specification :

High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~300mm x 340mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

Precision

Printing precision

≥2 [email protected]±10μ[email protected],6σ

Repeat printing

≥2 [email protected]±5μ[email protected],6σ

Cyclingtime

6.5s

Screen frame

screen frame dimension

737mm x 737mm

Screen frame fixation

air cylinder

Screen frame fixation

air cylinder

Platform

platform adjustment range

X:±4mm Y:±6mm

Platform adjustment angle

Z:±2°
PCB

PCB printing size

Min50*50mm Max300*340mm

PCB thickness

0.4mm-6mm

PCB weight

≤3kg

PCB warping

≤1%

Transmission

transmission direction

L→R,R→LL→LR→R

Transmission speed

100-1500mm/s programmable adjustment

Transmission width

50-340mm

Demould

Demould method

First use scraper, then demould, demould then use scraper

Demould speed

0.1-20mm/s

Speed distance

0mm-3mm

Workcondition

voltage

220V,±10%,single phase 50/60Hz

Power

4kw

Air pressure

0.45-0.6kg/cm²

Gas consumption

0.5ml/s

Safety performance

insulation resistance

1KV/3MΩ

Ground resistance

≤0.1Ω

Operation noise

≤87dB

External dimension

1400(L)X1540(W)X1500(H)mm
