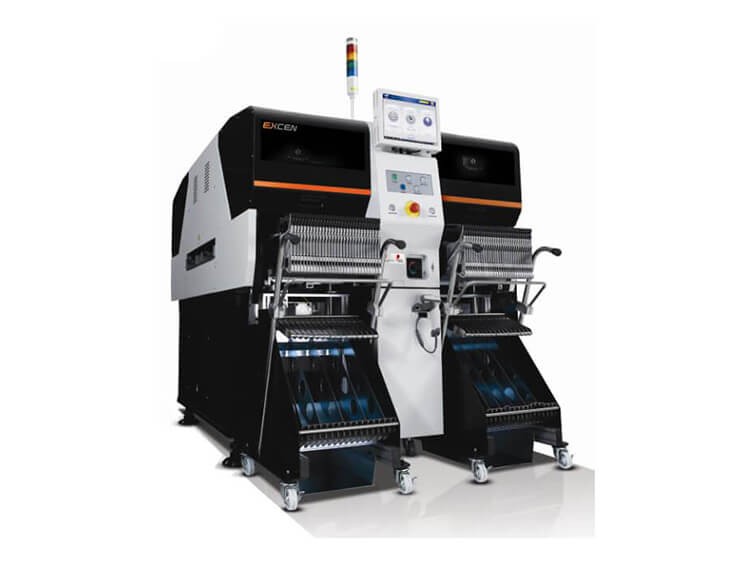

Samsung EXCEN PRO Chip Mounter

Samsung EXCEN PRO Chip Mounter

  • High Speed:120,000 CPH
  • Ultra Slim Design with a Total Length of 1.25m
  • Applies High Rotary Modular Head
  • Side-view Vision System
  • Product description: China Samsung EXCEN PRO High Speed SMT Modular Chip Mounter agent-Good Price! Good Quality! Good Service!

Samsung EXCEN PRO Chip Mounter


Samsung EXCEN PRO Chip Mounter

As a high speed modular mounter that applies a high speed rotary head equipped with 16 nozzles, EXCEN realizes the world’s highest speed of 120,000 CPH among mounters of the same class as well as the world’s highest area productivity. In addition, it secures the reliability of fine chip placement by applying the function to monitor pre- and post-part placement, SVS (Side-view Vision System), and maximizes work convenience and actual productivity by applying various operation modes including non-stop device type change, mixed production of different boards as well as the SMART Feeder that realizes the world’s first Auto Splicing and Auto Loading functions.

120,000 CPH(Optimum)
Ultra Slim Design with a Total Length of 1.25m
Applies High Rotary Modular Head
Side-view Vision System(SVS)   - Monitoring of pre- and post-part placement
Mixed Production of Different Boards/
Independent Production at the Front and Rear/
Non-stop Change-over of Device Types
High Speed and High Precision Feeder
SMART Feeder - The world’s first Auto Splicing and Auto Loading functions
Realizes the Highest Placement Speed of 120,000 CPH by Applying a High Speed Rotary Head Equipped with 16 Nozzles
Increases Actual Productivity by Reducing the Waiting Time Between Part Pickup and Placement to Zero(Cycloidal Motion)
Ultra Slim Design with a Total Length of 1.25m with Line Length and Area Productivity Being 50% and 200% of Those of Existing High Speed Lines, Respectively
Side-view Vision System(SVS)
Secures fine chip placement reliability by adopting a function to monitor pre- and post-part placement status
Applies an Electrically Driven High Speed and High Precision Feeder
Enables a stable supply of parts through high performance servo control
Applies Samsung’s original high precision accuracy compensation algorithm and mechanism to minimize accuracy deviation over time
Automatic Pickup Position Correction Function
Feeders have a fiducial mark for automatic recognition of part pockets - Applies automatic feeding after reel replacement
The function to recognize the nozzle center after automatic nozzle change allows for automatic correction of nozzle offset
Automatic correction of pickup error during pickup through part center recognition offset
Modular Head
Applies a modular head to allow an exchange between the high speed head and multi-functional head at the customers’ production site
Allows Simultaneous Production of Several Products Through Independent Production at the Front and Rear as well as Mixed Production of Different Types of Boards
Allows the Device Type to be Changed at a Lane without Stopping the Machine by Providing a Non-stop Device Type Change Function
Increased machine operation efficiency through advance preparation using a docking cart
Allows Maximization of Actual Productivity Through Various Operation Modes
Independent production at the front and rear mixed production of different boards, non-stop device type change, part placement in turns(Loading Time Zero)
Secures Feeder Operational Convenience by Applying a Super Slim Single Lane Electrically Driven Feeder
One-touch Exchange
Minimizes device type changing time by applying a one-touch exchange method to the docking cart, ANC and backup plate
SMART Feeder
Realizes the world’s first feeder equipped with Auto Splicing and Auto Loading functions · Applicable to reels with a small quantity of parts
Maximizes work convenience and actual productivity by automating the splicing process for part reel replacement which has been performed by hand
