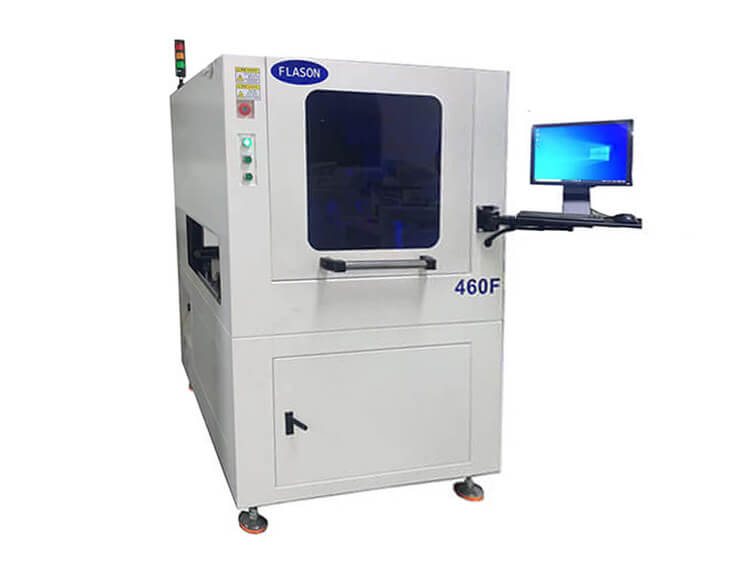

Automatic Selective Coating Machine 460F

4 axis moving
Max PCB:450*450mm
Position Accuracy ±0.02mm
Size 1060x1200mmx1700mm
Product description: Inline Automatic Selective Coating Machine 460F Manufacturer, 4 axis moving, Max PCB:450*450mm, Position Accuracy ±0.02mm, Size 1060x1200mmx1700mm
INQUIRY

Specifications:

Automatic Selective Coating Machine 460F

Product features

1. The equipment adopts industrial computer control, windowssa7 operating system;
2. Driven by servo motor + ball screw, with automatic precision calibration function, which can automatically eliminate
errors;
3. X, Y, Z, U four-axis movement, the valve body automatically tilts 35° and 360° and rotates arbitrarily, which can achieve
spraying without dead spots;
4. The equipment track automatic pressing function, the spraying accuracy is higher, the repeat accuracy is improved, the
glue is isolated from contact with the transportation chain, and the maintenance cycle is reduced;
5. It can carry two or more sets of valve bodies at the same time to increase the production capacity and realize the
splicing spraying;
6. Equipped with coating valve automatic soaking and automatic spitting device, which can avoid the clogging of the
valve nozzle, and the maintenance is convenient and quick;
7. Online track design, which can be connected with other equipment online;
8. Support offline programming and manual teaching programming methods;
9. Configure exhaust gas discharge port
11. Equipped with SMEMA interface to communicate with other devices
12. Optional glue level alarm system
13. Optional CCD visual positioning system

Frame size	L1060mmW1200mmH1700mm
weight	760kg
Control mode	Industrial computer + motion control card
Method of programming	Manual teaching
Run the software	Chengyuan Coating Machine Intelligent Selective Control Software
PCB Transmission height	900±20mm
Transportation speed	Max 300mm/s
Transmission direction	L→R （ R→L）
transfer method	Stainless steel chain + stepper motor
PCB Width range	50-450mm
Width adjustment method	Stepping motor automatically adjusts the width
X 、Y Shaft drive mode	Servo motor + high-precision screw module
X 、Y Maximum operating speed of shaft	1000mm/s
X.Y Axis positioning accuracy	0.01 mm
Z Maximum operating speed of shaft	500mm/s
Z Shaft drive mode	Servo motor + high precision module
Z Axis positioning accuracy	0.01 mm
U Shaft drive mode	Servo motor + synchronous wheel/synchronous belt
U Axis rotation angle	± 180°
Inclination angle of the valve	＜35°
Valve up and down	Slide cylinder
Number of valves	3 pcs
Valve type	Cone valve / sector valve / dispensing valve each
PCB Board size	MAX W50mm*L460mm
PCB Board component height	MAX 100mm
Coating width	1-30mm
Spray thickness	0.01 mm --5mm （ Determined according to glue performance）
Tank volume	10L Glue supply pressure tank (optional)
Cleaning function	The equipment comes with cleaning function
Lighting part	The equipment comes with white light and purple light
power supply	AC220V
Gas source	≥0.4MP
Total power	2.5KW
Automatic cleaning device	Standard
Barcode scanning function	Optional
CCD Visual positioning	Optional
