  • Automatic PCB loader
  • Automatic PCB loader
  • Automatic PCB loader
Automatic PCB loaderAutomatic PCB loaderAutomatic PCB loader

Automatic PCB loader

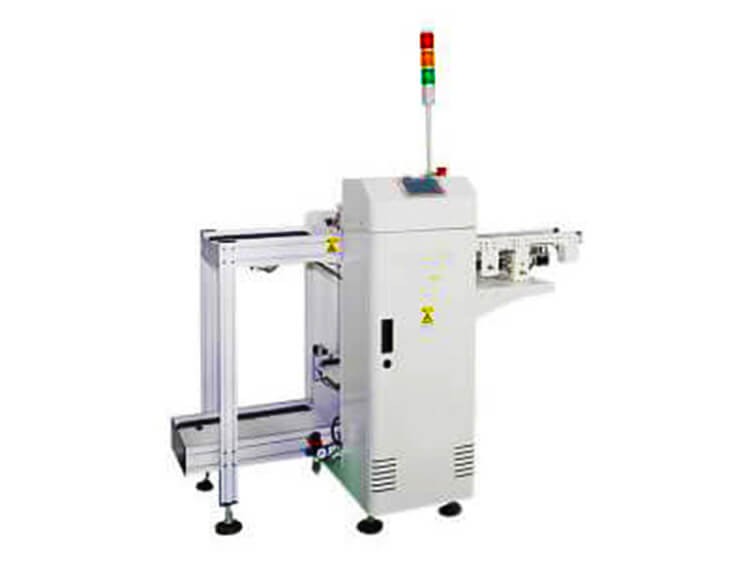

  • Demensions:500 x 800 x 1160mm
  • PCB size: 50x50 - 400x350mm
  • SMEMA compliant
  • Width adjustment automatically
  • Product description: Automatic PCB loader-Good Price! Good Quality! Good Service!

Automatic PCB loader-Good Price! Good Quality! Good Service!

Product Features:

Micro computer controlled component ensures machine’s stable and reliable running.
Optional Fuji buttons interface or touch panel interface, convenient man-machine interaction.
Multiple sound and light alarming functions
Use standard magazines, good compatibility, load with 3 magazines at one time.
Lifting distance adjustable according to PCB, 4 kinds of distance(10mm, 20mm, 30mm and 40mm)
Loader configured with inner push board component, save the cost of buying PCB moving machine independently.

Automatic counting function make it easy of production statistic
Optional SMEMA port for communication between machines.

Main functions and Parameter


Automatic Loader





Automatic Loader

Dimensions: 1450(L)×680(W)×1650(H)mm

Special Aluminum alloy guide rails and rubber belt

3?Magazine lifting with screw rod by 90WSPG electric-brake motor

4?Pneumatic PCB clamping structure

5?Magazine dimensions: 300(W)×340(L)×570(H)mm

6?PCB size: 60(W)×60(L)mm--250(W)×300(L)mm

7?Direction: L-R/ R-L

8?Adjustable Lifting distance:10,20,30,40 and 50mm

9?Programmable siemens PLC and controller

10?PCB Automatic loading to conveyor

11?Touch Panel controlled interface/Buttons interface

12?Working power 0.25KW

13?Power Source: 220v 50HZ

14?Air Source: 4-6MPa
