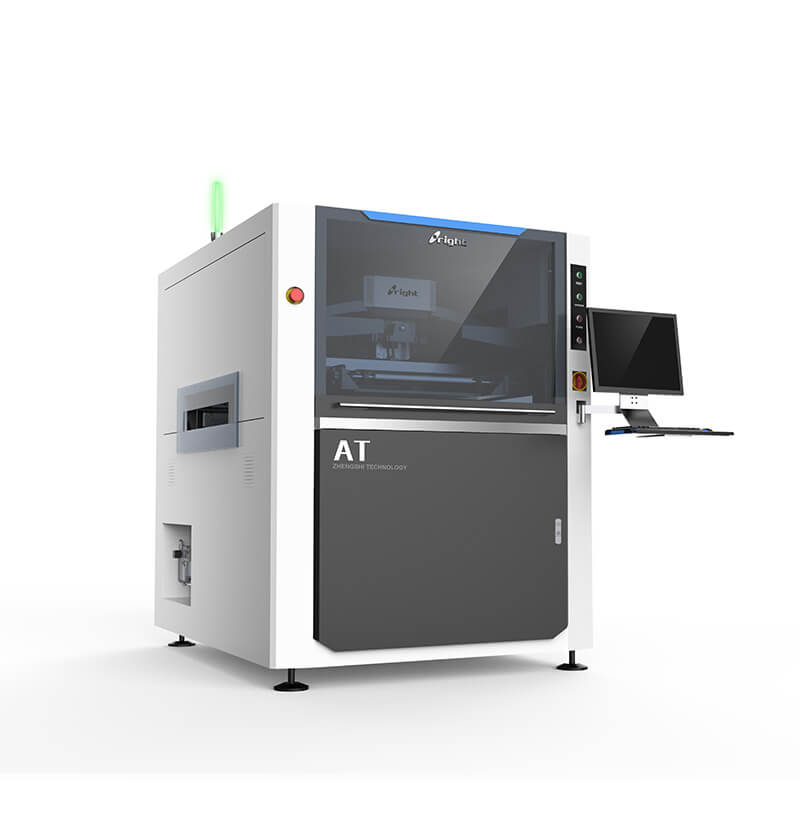

AT SMT Stencil Printer

AT SMT Stencil Printer

  • PCB Max Size 510X510mm
  • PCB Thickness 0.4~6mm
  • size: 1220(L)X1530(W)X1500(H)mm
  • Weight:1200Kg
  • Product description: AT SMT Stencil Printer Fully Automatic, PCB Max Size 510X510mm, PCB Thickness 0.4~6mm, size: 1220(L)X1530(W)X1500(H)mm, Weight:1200Kg
  • INQUIRY

AT SMT Stencil Printer

Products description


AT SMT Stencil Printer

AT SMT Stencil Printer Fully Automatic-Good Price! Good Quality! Good Service!

A Seriel SMT Stencil printer is high accuracy and high stability of the fully automatic printing machine vision,We followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Specification :
A Series High Precision Automatic Solder Paste Printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~510mm x 510mm;
PCB thickness: 0.4mm ~ 6mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Machine specification parameters

Item

Model
AT

Screen Frames

Min   Size

470X370mm

Max   Size

737X737mm

Thickness

25~40mm

PCB   Min Size

50X50mm

PCB   Max Size

510X510mm

PCB   Thickness

0.4~6mm

PCB   Warpage

1%

Transport   Height

900±40mm

Transport   Direction

Left-Right;Right-Left;Left-Left;Right-Right
-;-;-;-

Transport   Speed

Max   1500mm/S Programmable

Board   Location
PCB

Support System

Magnetic   Pin/Up-down table adjusted/supportblock
by hand
Magnetic thimble / adjustable jacking platform / contour block

Clamping System

side clamping,vacuum nozzle,

Print   head

Two   independent motorised printheads

Squeegee   Speed

6~200mm/sec

Squeegee   Pressure

0~15Kg

Squeegee   Angle

60°/55°/45°

Squeegee   Type

Stainless   steel(Standard), plastic

Stencil   Separation Speed

0.1~20mm/sec   Programmable

Cleaning   System

DryWetVacuum   (Programmable)

Table   Adjustment ranges

X:±10mm;Y:±10mm;θ:±2°

Machine


Repeat   Position Accuracy

±0.007mm

Printing   Accuracy

±0.015mm

Cycle Time

<8s (Exclude Printing & Cleaning)

Product   Changeover

<5Min

Air   Required

4.5~6Kg/cm2

Power   Input

AC:220±10%,50/60HZ   1Φ 3KW

Control   Method

PC   Control

Machine   Dimensions

1220(L)X1530(W)X1500(H)mm

Machine   Weight

Approx:1200Kg
