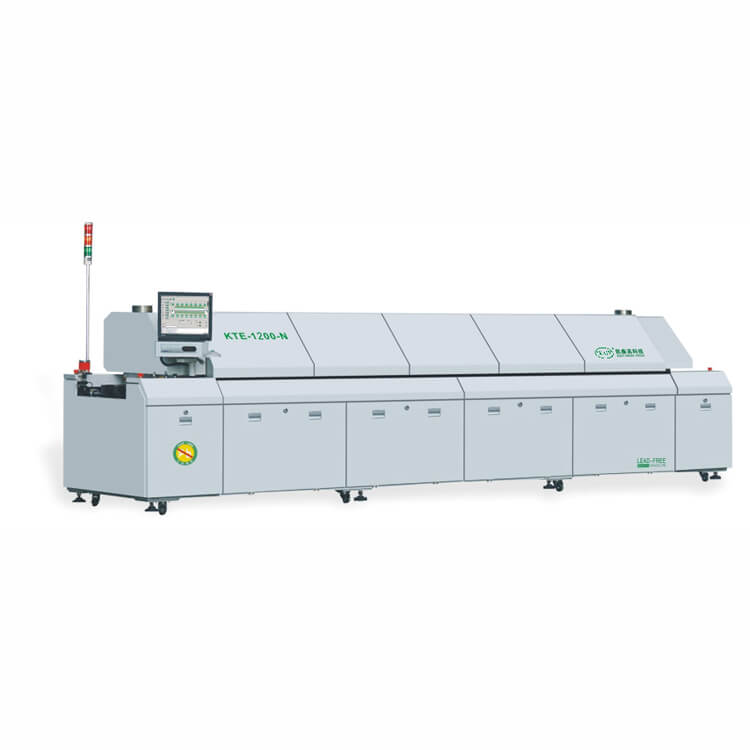

  • 12 Zones Nitrogen SMT Reflow Oven KTE 1200-N
12 Zones Nitrogen SMT Reflow Oven KTE 1200-N

12 Zones Nitrogen SMT Reflow Oven KTE 1200-N

  • 12 heating zones
  • Nitrogen soldering process
  • Weight Apprx.:2930KG
  • Dimension 6960*1360*1490mm
  • Product description: 12 Zones Nitrogen SMT Reflow Oven KTE 1200-N, 12 heating zones, Nitrogen soldering process, Weight Apprx.:2930KG, Dimension 6960*1360*1490mm
  • INQUIRY

12 Zones Nitrogen SMT Reflow Oven KTE 1200-N

Specifications:


12 Zones Nitrogen SMT Reflow Oven KTE 1200-N

Features:
1. Totally meet various requirements for the lead free processing.
2. WindowsXP operation system, Chinese/English can be swtiched online.
3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.
4. PLC+PID closed loop control to achieve high prectise temperature control and repeatable profiles.
5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.
6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.
7. The temperature inspection instrument constantly monitors the temperature of each temperature zone, ultra-high temperature protection, and automatically switch off the heating power
8. Nitrogen quantification is controllable throughout the process, and each temperature zone is independently closed-loop controlled, which can make the nitrogen concentration range from 5-200ppm.
9. The new two-stage flux recovery system, multi-point collection, fully improves recovery efficiency and reduces maintenance time and frequency for customers.


Machine Specification

Model

KTE-1200-N

Control

Industrial computer

Heating zones qty.

Top 12, bottom 12

Cooling zones qty.

Top 2

Heating zone length

4675mm

Current plate structure

Galvanized plate

Weight

Apprx.:2930KG

Dimension

6960*1360*1490mm

Exhaust capacity

12/min×2

Color

Grey

Nitrogen system

With "-N" standard configuration including nitrogen sealed structure and pipeline, nitrogen flow meter, water chiller cooling system

Full Nitrogen system: Oxygen analyzer added on the N Standard

Nitrogen consumption

Standard width machine (400mm Width): 300-1000ppmO2ppm, 10-20m3/ hr

N2 Consumption: Widening machine (610mm Width): 500-1000ppm at 25-30m3 / hr

Control system

Electricity supply

3P 380V/220V 50/60HZ

Temp. control range

Room temp.300℃

Total power

99KW

Temp. control accuracy

±1℃static state

Start power

44KW

Temp. control method

PID +SSR drive

Consumption power

12KW

PCB temperature deviation

±1.5℃

Speed control

Inverter adjust

Data save

All profiles can be saved

Warm up time

Apprx.30minute

Abnormal alarm

High, low temp. alarm

Conveying system

Rail structure

2 Sectional structure

Rail fixed method

Front fix

Chain

Stuck-free type

Conveying height

900±20mm

PCB Max. width

50-400mm

Conveying method

Mesh+ chain

Component height

Top/bottom 25mm

Conveying speed

300-2000mm

Conveying direction

Left to right

Lubrication

Automatic

Cooling system

Cooling method

Forced air cooling

Heating features

Heating zones

Top 12,bottom 124675mmcan meet the need of the peak lead-free technique.

Cooling zones

After cool down by air, PCB temp. is ≤70℃ at the exit.

Warm up time

From the normal temp. to set temp, approximate 30 minutes.

Warm up sequence

Warm up from two side, save the power and time

Profile transfer time

15min

Heating zone temp. control accuracy

±1℃

PCB temp. deviation

±1.5℃

Empty to full load heat balance respond time

≤20 s
