SMT PCB Conveyor

SMT PCB Conveyor

  • Product name: SMT PCB Conveyor
  • PCB Width: 50 to 350 mm
  • Application: SMT PCB Assembly Production
  • Power Supply: 1 PH AC 220V 50/60Hz
  • Product description: SMT PCB Conveyor-Good Price! Good Quality! Good Service!
  • INQUIRY

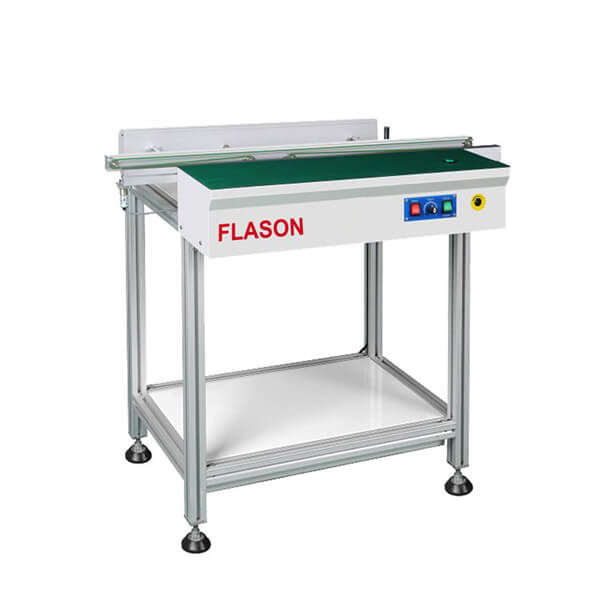

SMT PCB conveyor

Product Features:



PCB Conveyor is used in smt assembly line to transfer the PCB automaticly between SMT equipments. Normally there need PCB conveyor beside these machines: automatic solder paste printer,pick and place machines,SPI, automatic AOI,reflow ovens etc.

1 Modular design, optional assembly as per client’s requirement.

2 Rugged steel design, improves equipment stability .
3 Smooth stainless steel screw to adjust the width of the rail.
4 Variable speed control.
5 Circuit board testing mode.
6 Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7 Heavier bottom design, not easily shift.
8 Machine length can be customized.
9 Compatible with SMEMA interface.


Specification:

Standard SMT link/inspection Conveyor
Rail Length(mm)
500 mm
600 mm
1000 mm
1200 mm
1500 mm
2000 mm
Dimension (mm)
500*700*950
600*700*950
1000*700*950
1200*700*950
1500*700*950
2000*700*950
PCB Width
50 to 350 mm
PCB Direction
L to R or R to L
Speed
Adjustable
Switch
Foot Switch
Control System
PLC
Lighting
Optional
SOP Rack
Optional
Platform Material
ESD Rubber Mat
Communication
SMEMA for both in & out
Power Supply
1 PH AC 220V 50/60Hz
(Option:110V to 380V)
Weight
70 Kg
75 Kg
95 Kg
105 Kg
125 Kg
150 Kg

Keywords:

SMT Conveyor, PCB conveyor, SMT PCB conveyor, SMT assembly conveyor,PCB assembly conveyor, SMT assembly line conveyor, PCB assembly line conveyor, SMT production line conveyor, PCB production line conveyor, LED PCB conveyor, LED production line conveyor, LED assembly line conveyor.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT reflow oven, THT wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment,PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com


FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
