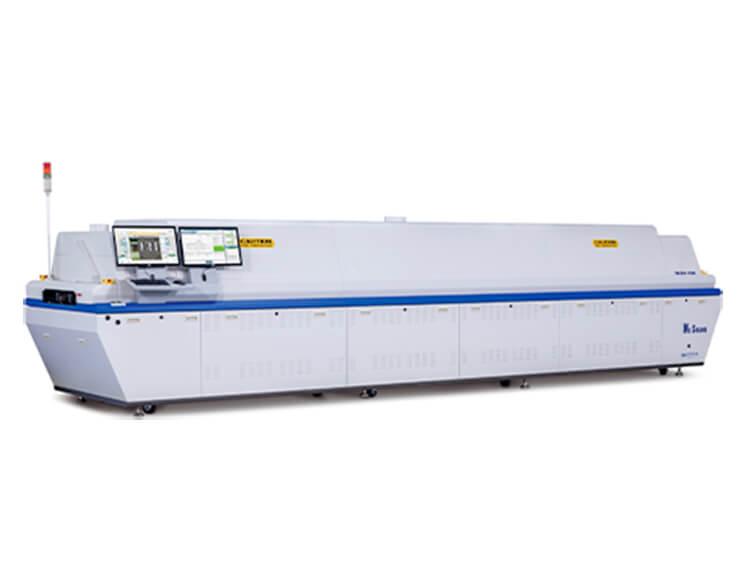

Nitrogen SMT Reflow Oven TSM TRN III-h103M

Products description

Nitrogen SMT Reflow Oven TSM TRN III-h103M

TRN III series applied with upper and lower Oven Tube Cooling & B/M Seal Cooling offer nozzle and triple insulation, optimized for connection method of high temperature.
Optimized system for high temperature
The optimized model series specialized for high temperature products are equipped with specially designed oven nozzle structure optimized for system High Convection at high temperature, B/M Seal Cooling and upper & lower Oven Tube Cooling.
Heater Output Monitoring (OP)
Heater Output Monitoring (OP) saves Data as Log File by monitoring output volume (MV), status information which controls each heater. Consequently, prevent heater trouble in advance after determining overheating status.
RPMS- B/M Motion Sensing Monitoring (OP)
Blow Motor Rotation Real Time Monitor : Checking normal operation of motor rotation in each zone and apply with an alarm function
Cooling function of equipment surface temperature (OP)
Additional cooling radiator on the upper oven allows surface temperature down to prevent the case that surface temperature of equipment increasing high temperature (400℃ setting), set by temperature Profile condition of cooling function of equipment surface temperature (OP) is relatively increased and higher than standard temperature Profile condition.
Model Numbering
SPEC
N2 Reflow for high temperature
TRN III-h Series
Closer to Customer’s Needs!
The high temperature Reflow specialized in high temperature setting is created based on solid
foundation of TRN series with an effort of Customer Proximity.
Product features
· Exclusive design specialized for high temperature operation up to 400°C
· Exclusive parts for high temperature and proceeded parts applied
· Highest triple insulation
· Cooling function around B/M sealing
· Oven tube cooling function
· Two FMS basic mounting
· Able to set up temperature difference between zones up to 150°C in max
· Applicable for TRN III-a model specification
