  • L15 SMT Stencil Printer

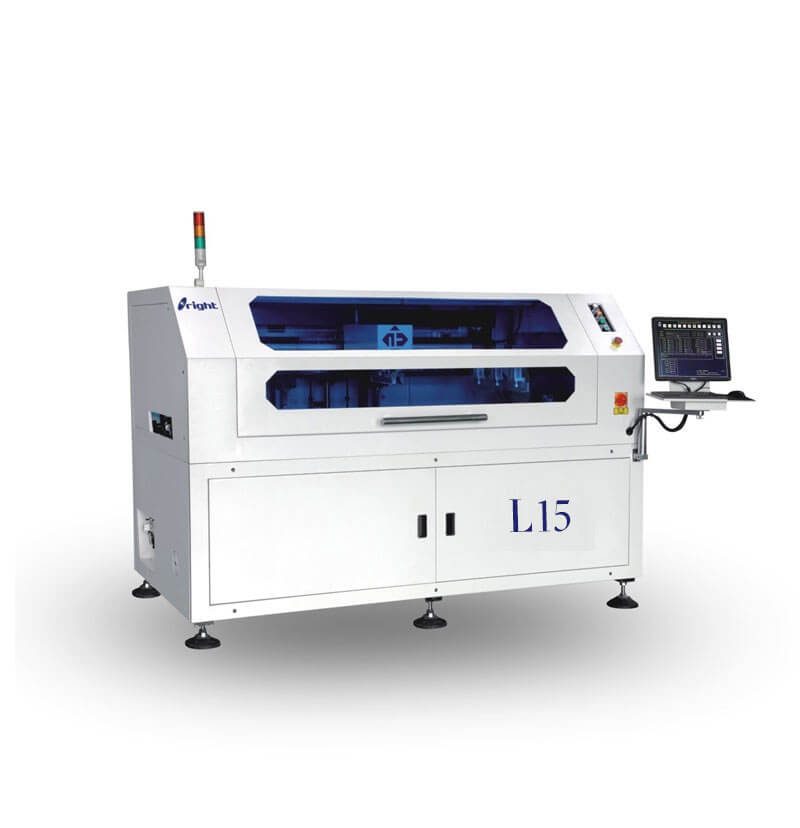

L15 SMT Stencil Printer

L15 SMT Stencil Printer

  • Gross Power: 50W
  • Voltage: 220V
  • size: 2500(L)X1200(W)X1500(H)mm
  • Weight:1800Kg
  • Product description: L15 SMT Stencil Printer Fully Automatic-Good Price! Good Quality! Good Service!
  • INQUIRY

L15 smt stencil printer

Products description


L15 SMT Stencil Printer Fully Automatic-Good Price! Good Quality! Good Service!

A Seriel SMT Stencil printer is high accuracy and high stability of the fully automatic printing machine vision,We followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Specification :
A Series High Precision Automatic solder paste printer designed for high precision
steel mesh printing or stencil printing in SMT industry.
Printing PCB size:50mm x 50mm ~1200mm x 800mm;
PCB thickness: 0.4mm ~ 14mm
FPC thickness: ≦0.6mm (Excluding jig)
Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,
min. ball 0.2mm;
Applicable PCB Types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,
medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Machine specification parameters

Item

Model
L15

Screen Frames

Min Size

1100X300mm

Max Size

1800X750mm

Thickness

25~40mm

PCB Min Size

80X50mm

PCB Max Size

1500X350mm

PCB Thickness

0.4~6mm

PCB Warpage

1%

Transport Height

900±40mm

Transport Direction

Left-Right;Right-Left;Left-Left;Right-Right

Transport Speed

Max 1500mm/S Programmable

Board Location
PCBpositioning

Support System

Magnetic Pin/Up-down table adjusted/supportblock
by hand

Clamping System

 Elastic side clamp / Z oriented sheeting



Squeegee Speed

6~200mm/sec

Squeegee Pressure

0~15Kg

Squeegee Angle

60°/55°/45°

Squeegee Type

Stainless steel(Standard), plastic

Stencil Separation Speed

0.1~20mm/sec Programmable

Cleaning System

DryWetVacuum (Programmable)

Table Adjustment ranges

X:±10mm;Y:±10mm;θ:±2°

 Machine


Repeat Position Accuracy

±0.015mm

Printing Accuracy

±0.03mm


Cycle Time

<12s (Exclude Printing & Cleaning)

Product Changeover


<5Min


Air Required

4.5~6Kg/cm2

Power Input

AC:220±10%,50/60HZ 1Φ 3KW

Control Method

PC Control

Machine Dimensions

2500(L)X1200(W)X1500(H)mm

Machine Weight

Approx:1800Kg



Keywords:

SMT Stencil printer, SMT solder paste printer, SMT printing machine, SMT PCB printer,600mm Solder paste printer, 1200mm solder paste printer, Solder paste printer, GKG stencil printer, GKG printer.

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine,SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment smt spare parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !

Contact information
