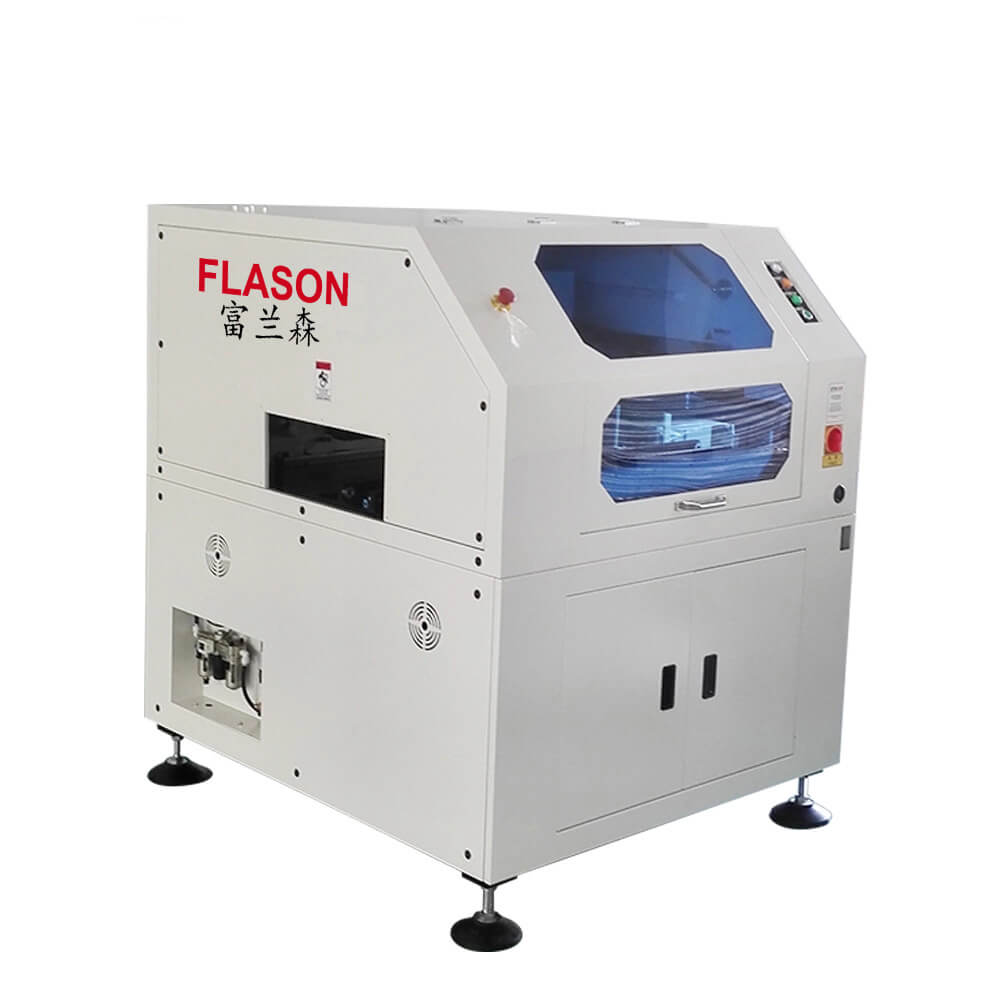

China second hand Automatic Solder paste printer good quality

China second hand Automatic Solder paste printer good quality

  • Power Supply: AC:220±10%,50/60HZ
  • Control Method: PC Control
  • PCB Size/Max: 850*500mm
  • Weight Approx:1300Kg
  • Product description: China second hand Automatic Solder paste printer good quality
  • INQUIRY

China second hand Automatic solder paste printer good quality

Products description

General Introduction

1. Product Functions

F850 is a high accuracy extra dimension printing robot designed for high precision screen printing or stencil printing in SMT industry.

2. Product Features

i. Wide compatibility for PCB dimensions from 100mm x 80mm to 850mm x 500mm and PCB thickness from 0.8mm to 6mm.

ii. High printing resolution

1. High positional accuracy, repeated positioning accuracy ±0.01mm; printing accuracy 0.025mm.

2. Support glue printing.

iii. Automatic control improves production efficiency, quality control and saves production cost:

1. Automatic stencil positioning

2. Automatic PCB alignment

3. Automatic adjustment of squeegee pressure

4. Automatic printing

5. Automatic stencil cleaning (dry-type, wet-type and vacuum-type)

iv. Adopt company independently developed suspended print head and programmable automatic pressure adjustment system with pressure closed-loop feedback. Support on-line real time pressure feedback and automatic squeegee pressure balancing. Accurate pressure control ensures perfect forming effect of solder paste.

v. Programmable motor controls squeegees separation speed and distance among squeegees, steel mesh and substrate board to realize multi-method separation.

vi. Multi-functional PCB positioning and clamping system for fast, convenient and accurate PCB positioning.

vii. Upward and downward visual positioning.

viii. Built-in image processing system

ix. Support 2D,SPC functions

3. Applicable pitches of Components

i. SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications.

ii. IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3 mm; support BGA, CSP packaging, min. ball diameter of 0.2 mm.

iii. Printing size?100mm x 80mm ~850 mm x 500 mm

iv. PCB Thickness?0.8 mm ~ 6 mm

v. FPC Thickness?thickness? 0.8 mm (excluding jig)

4. Applicable PCB Types

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, aerospace and aviation, besides general electronics products

Specification

* The following data is obtained under ambient temperature of 25  and humidity of 60%

Items: Flason S850

Parameter

Repeat Position Accuracy

±0.01mm

Printing Accuracy

±0.025mm(Absolute Guarantees)

Cycle Time

<11s (Excluding Printing & Cleaning)

Products Changeover

<5Min

Screen Stencil Size/Min

737mm*737mm?Note: Cleaning Adhesive tape shall be replaced for 737mm stencil?

Screen Stencil Size/Max

1100mm*900mm

Screen Stencil Thickness

20mm ~ 40mm

PCB Size/Min

100*80mm

PCB Size/Max

850*500mm

PCB Thickness

0.8~6mm

PCB Warpage Ratio

1% Based on diagonal length

Bottom of Board Size

13mm?standard configuration, 25mm optional configuration?

Edge of Board Size

3mm

Transport Height

900±40mm

Transport Direction

Left-Right; Right-Left; Left-Left; Right-Right

Transport Speed

100-1500mm/sec Programmable

Board Location

Support System

Magnetic pin/ Side support block/ Flexible automatic pin/optional

Clamping System

Elastic side clamping/Vacuum nozzle/Elastic Z-direction tabletting?optional?

Print head

Programmable integrated motor driven and pneumatic control print head

Squeegee Speed

10~200mm/sec

Squeegee Pressure

0~0.5MPa with adjustable pressure reducing meter valve

Squeegee Angle

60°(Standard)/ 55°/ 45°

Squeegee Type

Steel squeegee (standard), rubber squeegee,  customizable other types of squeegee.

Stencil Separation Speed

0.1~20mm/sec Programmable

Cleaning Methods

Dry-type, wet-type, vacuum-type (Programmable combination of Cleaning methods?

Table Adjustment Range

X: ±4mm;Y:±6mm;:±2°

Type of Image Fiducial Mark

Standard geometry shape of fiducial mark, bonding pad / stencil hole

Camera System

Single digital camera with upward/downward vision system

Air Pressure

4~6Kg/cm2

Air Consumption

Approx 0.07m3 /min

Control Method

PC Control

Power Supply

AC:220±10%,50/60HZ 1? 1.5KW

Machine Dimensions

1740mm(W)*1560mm(D) *1510(H)mm (excluding the height of indicating lighthouse)

Weight

Approx:1300Kg

Operation Temperature

-20°C ~ +45°C

Operation Humidity

30%~60%
