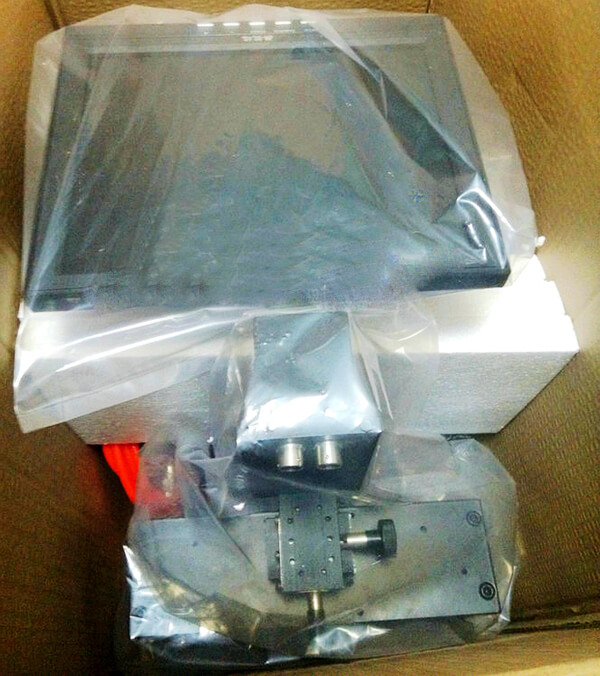

Panasonic CM402 SMT Feeder calibration jig

SMT feeder
Panasonic CM402 SMT Feeder calibration jig
Panasonic feeder
SMT pick and place machine Feeder
Product description: Panasonic CM402 SMT Feeder calibration jig
INQUIRY

Panasonic CM402 SMT Feeder calibration jig

Products description

Product Information
Product parameters:12-inch LCD monitor with a cross-scale 50 times color CCD camera
The lens part: using professional high-definition magnified 50 times CCD
Front of the lens: equipped with infrared LED light, can be more clearly detected suction position
Slider: X, Y, Z axes are used imported sliders, hardness, easy to wear, adjustable stroke 15MM
Display: 7 inch special LCD display, or black and white display, large and small customers optional
Part of the circuit: solenoid valve used Japan SMC components, buttons used Fuji brand
Base: used 45 # steel imported carved from, and other heat-treated to enhance its hardness, ensure its accuracy
Calibrator base: using imported 16MM thick aluminum processing

Display CCD Monitor
Correction Inner cross line
Master Jig Depend on feeder model
Operation Adjustable speed control
Air pressure 5 Kg/cm2
Power AC 110V / 220V
Weight 35Kg

CM402/602/NPM Feeder
CM402/602 8mm 0201	N610031080AA
CM402/602 8mm with sensor	KXFW1KS5A00
CM402/602 8mm without sensor	KXFW1KSBA00
CM402/602 12/16mm with sensor	KXFW1KS6A00
CM402/602 12/16mm without sensor	KXFW1KSCA00
CM402/602 24/32mm with sensor	KXFW1KS7A00
CM402/602 24/32mm without sensor	KXFW1KSDA00
CM402/602 24/32mm Deep groove	KXFW1LOYA00
CM402/602 44/56mm with sensor	KXFW1KS8A00
CM402/602 44/56mm without sensor	KXFW1KSEA00
CM402/602 44/56mm Deep groove	KXFW1LOTA00
CM402/602 72mm with sensor	KXFW1KS9A00
CM402/602 72mm without sensor	KXFW1KSFA00
CM402/602 72mm Deep groove	KXFW1LOZA00
CM402/602 88mm with sensor	KXFW1KS10A00
CM402/602 88mm without sensor	KXFW1KSEA00
CM402/602 stick feeder	KXFW1KSRA00

BM Feeder
BM	8W*2P	10896BF101	Double
BM	8W*2P	N610014231AA	Double
BM	8W*4P	10896BF106	Double
BM	8W*4P	N610016060AA	Double
MSF	8W*2P	10896BF061	Double
MSF	8W*4P	10896BF066	Double
BM	8W*2P	10896BF074	Single
BM	8W*4P	10896BF071	Single
BM	12MM	FAE1200MA300
BM	16MM	FAE1600MA300
BM	24MM	FAE2400MA300
BM	32MM	FAE3200MA300
BM	44MM	FAE4400MA300
BM	56MM	FAE5600MA300
