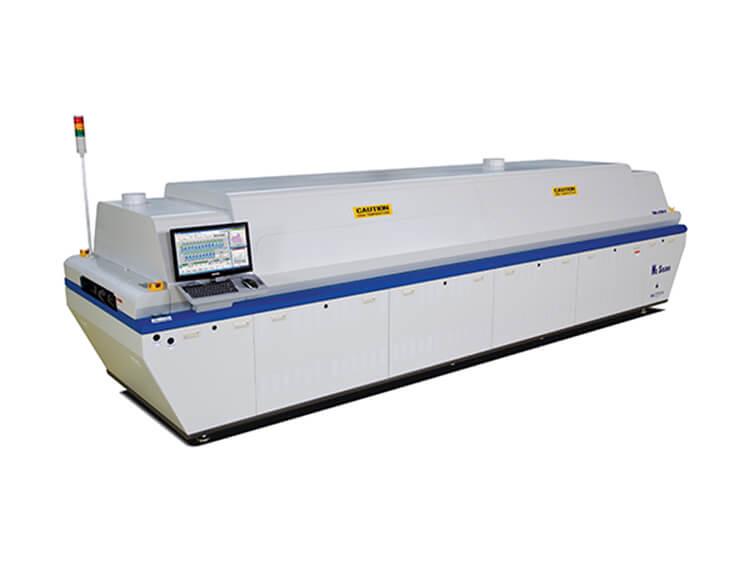

Nitrogen SMT Reflow Oven TSM TRN III- a93M

Products description

Nitrogen SMT Reflow Oven TSM TRN III- a93M

One touch removable type 2 Way Radiator
Realized improvement of product quality through reduction of Flux inside of oven and collection rate of Flux due to additional installation of highly performed FMS, optimized the equipment in PH. Reduce downtime by applying one touch sliding removable type and level sensor of FMS's Flux contain. This sensor alarms when fill it up.
Oil level detection sensor for C/V chain
Sensing function of Conveyor Chain Oil Level alerts protection of C/V chain in case of shortage of oil with functions of alarm and message during operation.
Flux level sensing Flux Drain Container
Detect precise cleaning time of Flux through alarming and message on level of Flux, collection container of Flux Management
RTPM (Real Time Temperature Profile Monitoring System)
- Temperature Profile Memory Function per production and product type
- No need on Profile Check when changes of production model
- Real time saving of Reflow information (basic one minute in scale)
- Able to checking temperature condition of Reflow with real time graph
- Provide all information of Reflow through host computer communication
- Interface TSM Reflow MMI Program
Ceaseless innovative TRN series for the best Reflow offers the utmost customer
satisfaction with the outstanding models, aiming Econology and Humanism,
a core philosophy of TSM
NEW FMS, Heat Discharging System
Circulate the air in order to cluster Flux inside of oven and exchange the heat continuously
Heat discharging system newly mounted realizes cost saving of its ventilation during process by emitting the heat through the way of closed duct.
RPPM (option)
Monitoring conditions of O2 ppm in all zone at all time, managing O2 ppm Profile Graph Data
according to types of production products with time slot and Spec and producing quality products while maintaining even O2 ppm
2RADIATOR(option)
Achieved double performance of collecting flux by applying additional FMS in zone of Pre Heating on top of FMS in cooling zone and also able to extend a period of FMS's PM.

Product Features
· Realize Flux Zero in OVEN -> equip FMS applied with patent technology
· Thermal Interference Innovation in each zone -> Able to set up temperature difference with 60ºC in max. of interzone
· Internal Heat Reduction of Reflow -> apply New Emission System
· Real-time Monitoring (optional)
- Real-time Temperature Profile Monitoring (RTPM)
- Real-time Oxygen Concentration Monitoring in each zone (RPPM)
- Conveyor Vibration Monitoring
- Monitoring a number of rotations of Blower Motor
- Circulation Temperature Monitoring of FMS
- Output Monitoring of Heater Control
- Alert of Conveyor Chain Oil Level
- Alert of Dust Collection Flux Level
· Powerful performance of FMS ever before with double sized capacity of FMS installation (2x8=>2x12A)
· Reduction of N₂ consumption with more than 20% compared to previous models (fan size / change of perforated plate)
· Improved ppm performance with more than 30% compared to previous models (curtain shutter applied)
