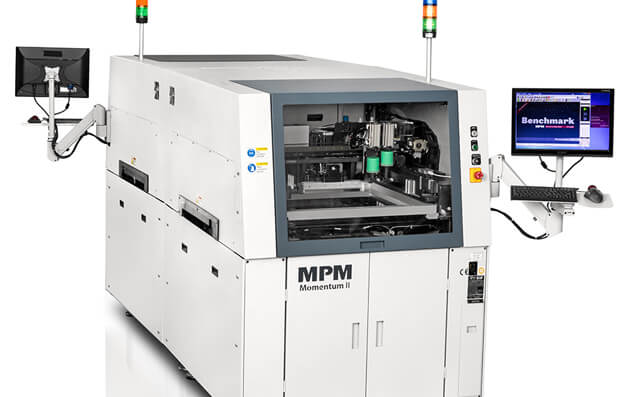

MPM Momentum II BTB SMT Stencil Printer

MPM Momentum II BTB SMT Stencil Printer

  • Print Speed:0.635mm/s-304.8mm/s
  • PCB Size:609.6 mm x 508 mm
  • Weight:797KG
  • size: 1195x1394x1589mm
  • Product description: MPM Momentum II BTB SMT Stencil Printer, Print Speed:0.635mm/s-304.8mm/s, PCB Size:609.6 mm x 508 mm, Weight:797KG, size: 1195x1394x1589mm
  • INQUIRY

MPM Momentum II BTB SMT Stencil Printer

Specifications:


The MPM® Momentum® II BTB™ (Back to Back) configurable stencil printer allows dual-lane processing for higher throughput but without increasing either line length or capital investment. The Momentum II BTB stencil printer is the most flexible printer in the Momentum II machine.

More Throughput in Less Space
The Momentum II BTB printer is a space-saving 200 mm shorter than the standard Momentum II printer. Configure for dual-lane processing by positioning two BTB printers back-to-back in a manufacturing line. Dual-lane processing generates the output of two printers in the length of one.
Ultimate Flexibility in the Momentum Platform
Use the MPM printer in-line as a stand-alone or configure back-to-back for dual-lane output.  Print multiple products in a single SMT line, for example, print top and bottom sides, print the same side, or print mother/daughter boards. The Momentum II BTB printer comes in two different throughput configurations for optimum flexibility in line balancing.
Match Printer Strategy to Dual Lane Strategy
The Momentum II BTB printer allows total front-side accessibility and service, with open access to the electrical system, solvent reservoir, and other key components. Because the BTB printer requires no read access or extra buffer space, position each printer to maximize your facility floor space.
Proven Momentum Series Accuracy and Performance
Alignment repeatability of ±11 microns @ 6 sigma, Cpk ≥2 and wet Print accuracy of 17µm@6σ, Cpk ≥ 2, with 6σ capability designed in and independently verified. The MPM Momentum II series printers are fast, precise, and highly reliable, with performance unmatched by any other printer in their class.
MPM MOMENTUM II BTB SPECIFICATIONS
BOARD HANDLING
Maximum Board Size (X x Y) 609.6 mm x 508 mm (24” x 20”)
A dedicated workholder is required for boards with an X size greater than 20”
Minimum Board Size (X x Y) 50.8 mm x 50.8 mm (2” x 2”)
Board Thickness 0.2 mm to 5.0 mm (0.008” to 0.20”)
Maximum Board Weight 4.5 kg (10 lbs)
Board Edge Clearance 3.0 mm (0.118") Underside Clearance 12.7 mm (0.5") standard. Configurable for
  25.4 mm (1.0”)
Board Hold-Down Fixed top clamps, centernest vacuum Board Support Methods Magnetic pins
Optional: Vacuum side dams, vacuum pins, support blocks, dedicated fixtures, patented auto tooling, Quik-Tool

PRINT PARAMETERS
Maximum Print Area (X x Y) 609.6 mm x 508 mm (24” x 20")                   Print Gap (Snap-off) 0 mm to 6.35 mm (0" to 0.25")                     Print Speed 0.635 mm/s - 304.8 mm/s
  (0.025 in/s - 12 in/s)                                         Print Force 0 to 22.7 kg (0 lb to 50  lbs)
Stencil Frame Size 737 mm x 737 mm (29" x 29") Adapters available for smaller sizes
VISION
Vision Field-of-View (FOV) 10.6 mm x 8.0 mm (0.417” x 0.315”)
Fiducial Types Standard shape fiducials (see SMEMA standards), pad/aperture
Camera System Single digital camera
  - MPM patented look up/down  vision
PERFORMANCE
Total System Alignment ±11 microns (±0.0004”) at 6 sigma, Accuracy and Repeatability Cpk ≥2.0*
Qualification is performed using production environment process variables; print speed, table lift and camera movement are included in the capability figure.
Wet Print Deposit ±17 microns (±0.0007”) at 6 sigma, Accuracy and Repeatability Cpk ≥2.0*
Based upon actual wet printing with positional accuracy and repeatability verified by a 3rd party measurement system.
Cycle Time
Momentum II BTB 9 seconds standard Momentum II BTB HiE 7.5 seconds standard
FACILITIES
Power Requirements 200 to 240 VAC (±10%) single phase @
  50/60Hz, 15A
Air Supply Requirements 100 psi at 4 cfm (standard run mode) to 18
cfm (vacuum wipe) (7 bar @ 5 L/s to 12 L/s),
  12.7 mm (0.5”) OD x 9.5 mm (3/8”) ID line
Height (excluding light tower) 1494.10 mm (58.82") at 940 mm (37.0”)
  transport height                                       Machine Depth 1423.5 mm (56.04")                                  Machine Width 1196.0 mm (47.09”)                                Minimum Front Clearance 508 mm (20.0”)
Minimum Rear Clearance 508 mm (20.0”)
BTB Configuration 10 mm (0.39”)
Machine Weight 797 kg (1757 lbs)
Crated Weight 1090.5 kg (2404 lbs)

* The higher the Cpk, the lower the variability with respect to the process specification limits. In a process qualified as a 6 sigma process (i.e., one that allows plus or minus 6 standard deviations within the specification limits), the Cpk is greater than or equal to 2.0.
Specification is subject to change without notice. Please consult factory for specifics.
ITW EAE maintains an ongoing program of product improvement that may affect design and/or price. We reserve the right to make these changes without prior notice or liability.
