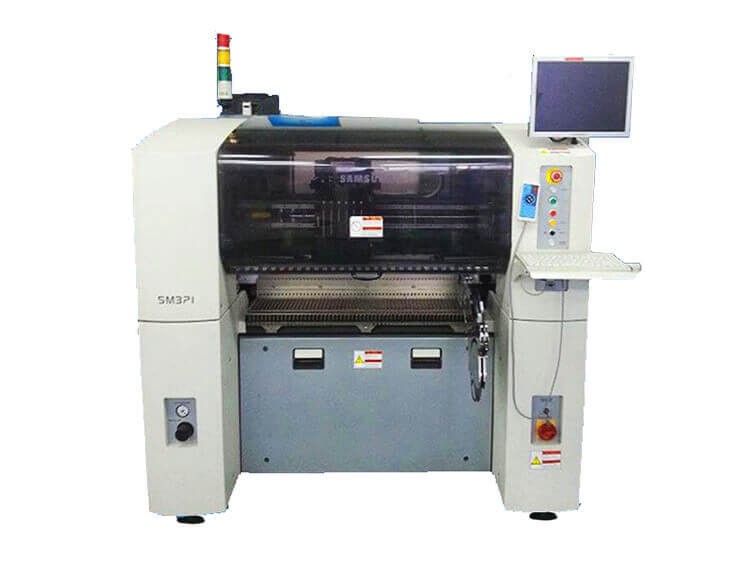

Samsung SMT placer SM321 High Speed SMT Modular Chip Mounter

Samsung SMT placer SM321 High Speed SMT Modular Chip Mounter

  • Mounting range 0402mm Chip to 55mm
  • PCB size 460 * 400 * 4.2 ~ 50 * 40 * 0.38
  • feeders Max.120EA
  • Chip theoretical speed of 21,000CPH
  • Product description: Samsung SMT placer SM321 High Speed SMT Modular Chip Mounter, Mounting range 0402mm Chip to 55mm, PCB size 460 * 400 * 4.2 ~ 50 * 40 * 0.38, feeders Max.120EA, Chip theoretical speed of 21,000CPH
  • INQUIRY

samsung SMT placer SM321 High Speed SMT Modular chip mounter

Product Description



Original SMT SAMSUNG SMT placer SM321 pick and place machine
Name:SAMSUNG SMT placer Pick And Place Machine

Brand:SAMSUNG
Model:SAMSUNG SMT SM321 Pick And Place Machine
Specification:SAMSUNG SMT SM321 Pick And Place Machine
Condition:original/copy
Quality:top qualiy
Stock:large
Payment:L/C T/T D/P Western Union Paypal Money Gram And Others
Shipment:In three days
Warranty: 1 year
Delivery:fedex,ups,dhl,as required

Package:carton box with foam protect

Chip theoretical speed of 21,000CPH
Mounting range 0402mm Chip to 55mm
Placement accuracy plus or minus 0.03mm
PCB size 460 * 400 * 4.2 ~ 50 * 40 * 0.38
Equipment size L1,650 * D1,680 * H1,530
Power 4.7KVA
Equipment weight 1800kg
Maximum height H 15mm (fixed vision)
Narrow Pitch Mounting 0402 Chip: P 0.10mm
0603 Chip: P 0.15mm
The number of feeders Max.120EA
PCB size (mm)
(L * W * T) Standard 460 * 400 * 4.2 ~ 50 * 40 * 0.38 (weight 3kg)
Option 510 * 460 * 4.2
Special custom 610 * 510 * 4.2
Dimensions L1,650 * D1,680 * H1,530
Weight (KG) 1,800kg
Energy consumption 3phase
AC200 / 208/220/240/380/415
4.7kVA / (RMS 3kVA) 50 / 60Hz
Air consumption 5KG / cm2 260NI / min

Samsung SMT SM321S using Windows XP operating system, the best production speed of 52,000 CPH, Dual-arm Y-axis dual-servo drive system, arms a total of 16 placement head, high-speed flight image recognition system,Components to adapt to: 0402mm Chip to12mm, placement accuracy: ± 50μm, non-stop refueling, For the new SM feeding system, LED display feeder status, dual transmission system, can be put 84 8mm feeders, With front and back for the operation of the LCD display, automatic mouth change device.

SAMSUNG SMT SM321 Pick And Place Machine

Keywords:

Pick and place machine, samsung chip mounter, samsung chip shooter, IC placer,SMT pick and place machine, juki pick and place machine, SMT pick and place machine

Flason Electronic Co.,ltd provide a full smt assembly line solutions, includingSMT reflow oven, THT wave soldering machine, Pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment,PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com


FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !
