Samsung SM471 Pick and Place Machine

PCB size 510 (L) * 460 (W)
Patch speed 75,000 CPH
1650L * 1690D * 1485H
weight 1820KG
Product description: Samsung SM471 Pick and Place Machine, PCB size 510 (L) * 460 (W), Patch speed 75,000 CPH, weight 1820KG, Dimension: 1650L * 1690D * 1485H
INQUIRY

Samsung SM471 Pick and Place Machine

Description:

Chip theoretical speed of 75,000 CPH

Mounting range 0402Chip ~ □ 14mmIC
Positioning accuracy of plus or minus 0.04mm
PCB size 510 (L) * 460 (W)
Equipment size 1650L * 1690D * 1485H
Power AC200 / 208/220/240/380
Equipment weight 1820KG

The Samsung SM471 is a high-speed Chip Mounter equipped with 10 axes for each mount head and dual-boom,

high-performance newer flying camera placement machine that delivers world-class top speeds of 75,000 CPH .

0402Chip ~ 14mm can be basically corresponding, and through the application of high-speed.

High-precision electric feeder, improve the actual productivity and placement quality.

SM471 parameters
Number of shafts: 10 shafts * 2 cantilever
Mounting Speed: 75000CPH (Optimal Conditions)
Mounting accuracy: CHIP 50
Component Size: 0402, BGA, CSP (Ball Pitch 0.4mm)
Substrate size:
Min 50 (L) * 40 (W)
Largest monorail 510 (L) * 460 (W)
Dual Rail 460 (L) * 250 (W)
PCB thickness: 0.38 ~ 4.2
Feeder equipped with the number: 120ea / 112ea
Power: AC200 / 208/220/240/380
Air pressure: 0.5 to 0.7 MPa (5 to 7 kgf / cm)
Weight: 1820KG
Equipment size: 1650L * 1690D * 1485H

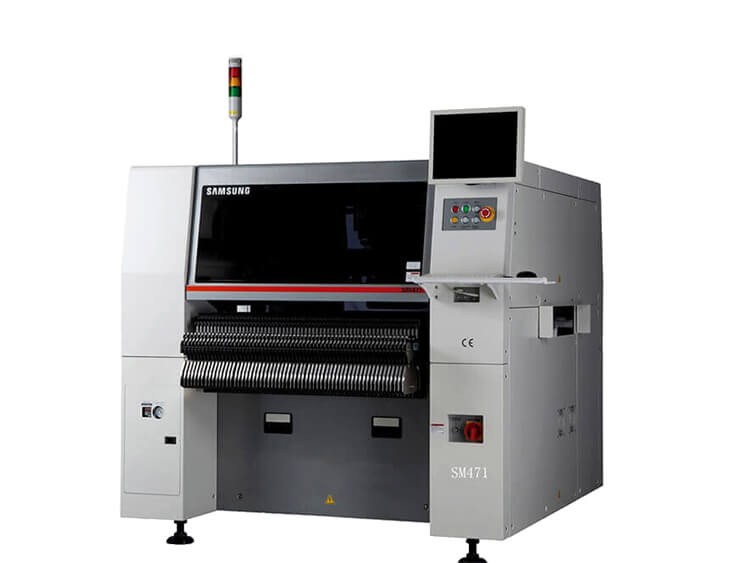

Samsung SM471 Placement Machine

Realizes the Highest Placement Speed Among Chip Shooters of the Same Class by Adopting a New Flying

Head Mechanism Equipped With 10 Spindles.

As a high performance chip shooter that applies two gantries equipped with 10 spindles per head as well

as new flying vision, the SM471 realizes a chip mounting speed of 75,000 CPH, the highest in the world

among chip shooters of the same class. In addition, it is applicable to 0402 chips to the largest □ 14mm ICs

by default and increases actual productivity and placement quality by applying an electrically driven high

speed and high precision feeder. Moreover, it is designed for mixed use with the SM pneumatically driven

feeder to maximize the customers’ operational convenience.

75,000 CPH(Optimum)
2 Gantry x 10 Spindle/Head
Applicable Parts : 0402 ~ □ 14mm(H 12mm)
Applicable PCB : Max. 510(L) x 460(W)(Standard), Max. 610(L) x 460(W)(Option)
Electrically Driven High Speed and High Precision Feeder
Allows mixed use with an SM pneumatically driven feeder
SMART Feeder
The world’s first feeder equipped
Placement Accuracy Correction System

Chip ±50μm㎛(Cpk ≥1.0) The newly upgraded placement accuracy calibration system automatically checks

and corrects the pickup point offset, head offset, C/V offset, etc. to allow reliable part placement.

Dual Lane System

PCB Loading Time of “ZERO” Maximizes actual productivity by minimizing the PCB transfer time by

adopting a first-in-first-out type shuttle inlet conveyor. In addition, it supports various placement

modes according to production characteristics.

Electrically Driven High Speed and High Accuracy
