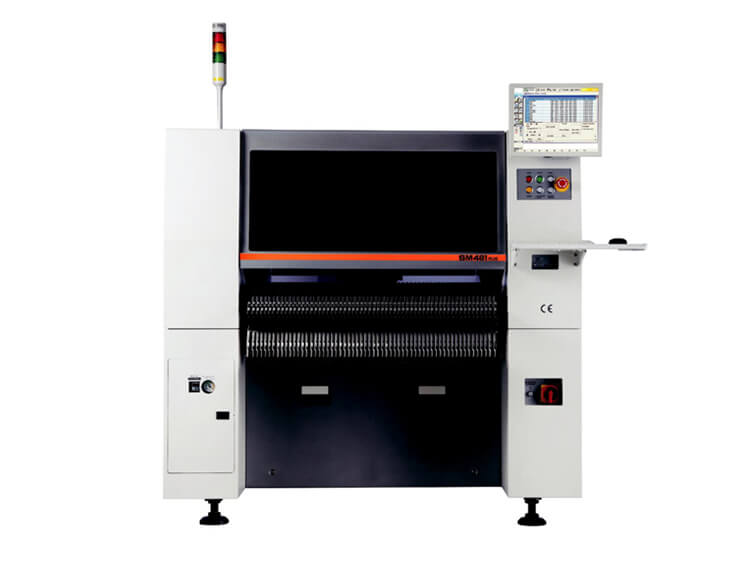

Hanwha SM481 PLUS Chip Mounter

Components: 0402 ~ 42mm(H 15mm)
Max PCB:Max. 460(L) x400(W)(Standard)
Weight: 1400KG
Speed:40,000CPH
Product description: Hanwha SM481 PLUS Chip Mounter-Components: 0402 ~ 42mm(H 15mm),Max PCB:Max. 460(L) x400(W)(Standard), Speed:40,000CPH, Weight: 1400KG
INQUIRY

Hanwha SM481 PLUS Chip Mounter

Introduction

SM481 Plus pick and place machine realizes the highest-speed placement of the TECHWIN patented identification method of the medium-speed machine, namely the on the Fly identification method, which can achieve 40,000CPH of Chip components and unit mounting time of QFP components of 1.1 seconds (each is Optimum ) High-speed placement. The One-Gantry structure uses a 10Nozzle high-speed keyboard head, which can be operated with the least manpower using one side of the device. It can support 1,500mm long board, and it has the strongest PCB correspondence ability in SM series.

Model Name	SM471plus	SM481plus	SM482plus
Alignment	Flying Vision	Flying Vision+stage vision	Flying Vision+stage vision
Spindles	10 Spindles ×2 Gantry	10 Spindles ×1 Gantry	6 Spindles ×1 Gantry
Placement Speed	78,000CPH(Optimum)	40,000CPH(Optimum)	30,000CPH(Optimum)
Placement Accuracy	±50μm#μ±3σ	±30μm#μ±3σ	±30μm#μ±3σ

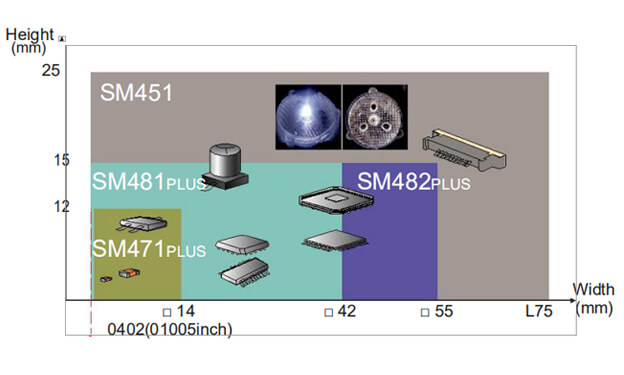

Applicable Parts	0402 ~ 14mm(H 12mm)	0402 ~ 42mm(H 15mm)	0402 ~ 55mm(H 15mm)
Applicable PCB	Max. 510(L) x 460(W)(Standard)	Max. 460(L) x400(W)(Standard)	Max. 460(L) x400(W)(Standard)
Applicable PCB	Max. 610(L) x 460(W)(Option)	Max. 1500(L) x 460(W)(Option)	Max. 1200(L) x 510(W)(Option)
Dimension(L.D.H)	1650×1690×1458	1650×1680×1530	1650×1680×1458
