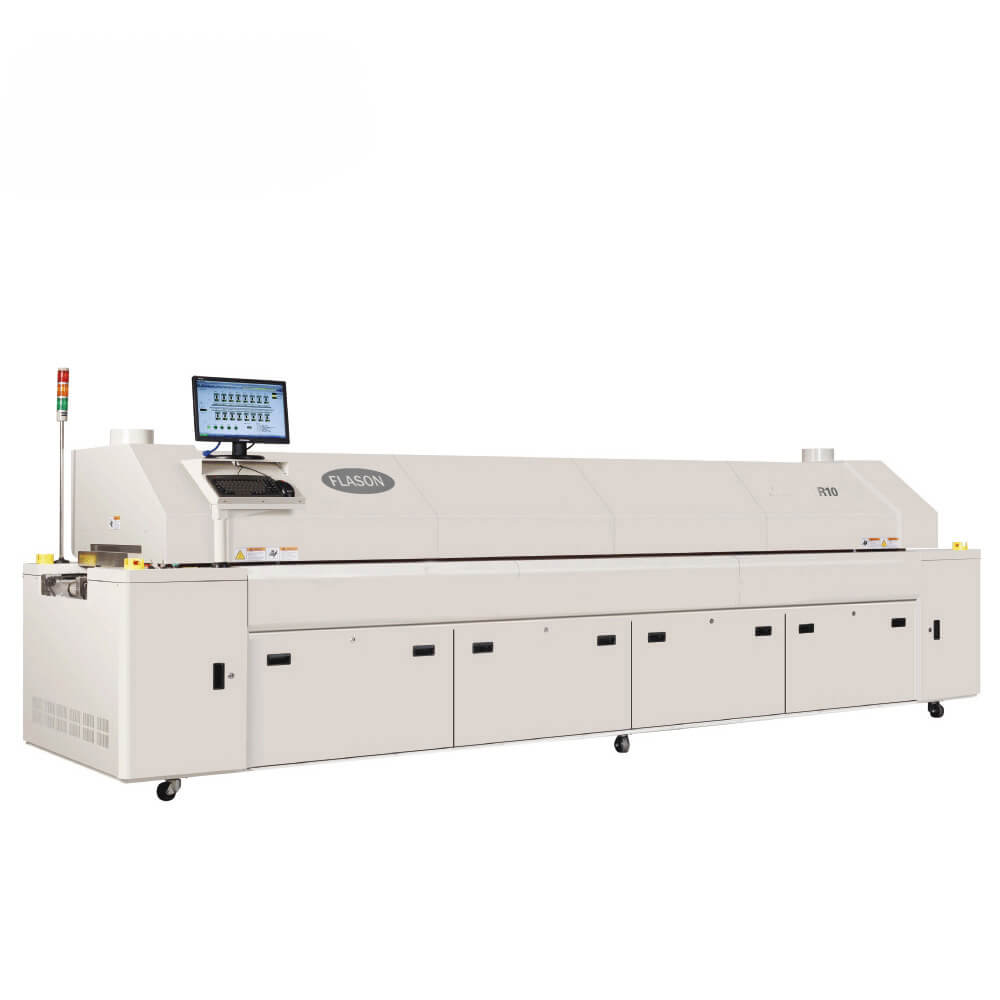

  • Reflow Soldering Oven for SMT LED PCB Welding Machine 10 Zones Oven R10
  • Reflow Soldering Oven for SMT LED PCB Welding Machine 10 Zones Oven R10
Reflow Soldering Oven for SMT LED PCB Welding Machine 10 Zones Oven R10Reflow Soldering Oven for SMT LED PCB Welding Machine 10 Zones Oven R10

Reflow Soldering Oven for SMT LED PCB Welding Machine 10 Zones Oven R10

  • Name: SMT Reflow Oven
  • Heating zones: 10
  • Heating method: Hot Air
  • Usage: SMT Assembly line
  • Product description: Reflow Soldering Oven for SMT LED PCB Welding Machine 10 Zones Oven
  • INQUIRY

reflow soldering oven for SMT LED PCB Welding Machine 10 Zones Oven R10

Introduction:

This reflow oven Dedicated backflow design, adjacent zones can achieve 90° temperature set-point difference,Adjustable air flow of all heating zones,max of 70CFM air flow,Heating passage with high efficient heat barrier, minimized heat loss to environment.

1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.

2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.

3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.

4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.

5. Effective heating zone length with uniform heat distribution.

6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.

7. PLC and PID closed loop control to achieve high precision temperature control.

8. Standard 10 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.

9. The rail track is dealt with hardening process to make it more reliable.

10. Manual adjusted process track width whereas providing option of automatic by SPG gear motor.

11. Computerized controlled rail chain lubrication structure.

12. Powerful software system can save all settings and data printout capability.

13. Flux removal unit meet with environmental protection requirement.

14. Nitrogen structure is an option.

Specification:

Model

Flason R10

Heating System

Number of heating zones

Top 10/Bottom 10

Number of cooling zones

3

Heating Passage

3900mm

Heating Style

Hot air

Cooling Style

Air Oven: Forced air

Exhaust Volume

10m³/min * 2 vanes

Conveyor System

Max. Width of PCB

450mm

Mesh belt width

500mm

Conveyor Direction

L-R(or R-L)

Process Height

900±20mm

Conveyor style

Mesh and chain

Range of rail width

0-450mm

Conveyor speed

0-2000mm/min

Auto/manual Lubrication

Standard

Fixed Track

Front track fixed(option: rear track fixed)

Product Clearance

Top and bottom 25mm

Control system

Power supply

5 cables 3 phase 380V 50/60Hz

Total consumption

50kw

Startup consumption

48kw

Steady consumption

10KW

Ramp up time

About 20 mins

Temp. set-point range

Room temperature-300°C

Temp. control method

PID close loop control & SSR driving

Temp. control precision

±1°C

Temp. deviation on PCB

±2°C

Data storage

Process Data and status storage(80GB)

Nozzle plate

Aluminum Alloy Plate

Abnormal Alarm

Abnormal temp. (overtemp/low temp.)

Board dropped alarm

Light Tower: Amber-warming, Green-normal, Red-abnormal

General

Dimension(L*W*H)

5710×1400×1550mm

Weight

2150KG

Color

Computer grey

Keywords:

SMT reflow oven, soldering oven, SMT oven, SMT soldering reflow oven, smt assembly line reflow oven, PCB soldering reflow oven, SMT assembly oven, PCB soldering oven, LED reflow oven, LED PCB reflow oven.
