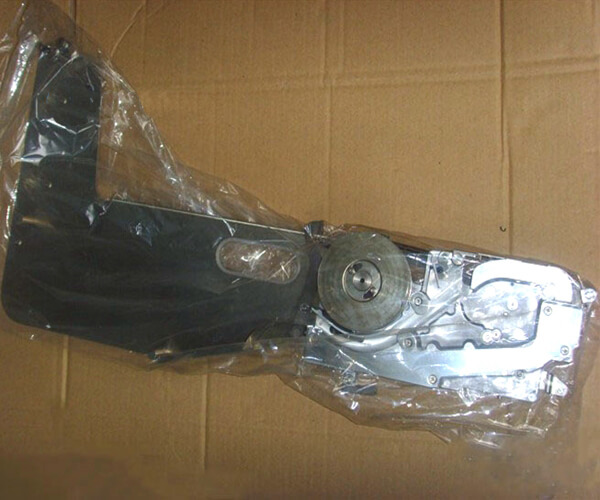

Juki NF 16mm Feeder
Products Description:
flason smt can supply you the following JUKI NF Feeders:
NF8*2mm NF05HP/05HE
NF8*4mm NF081P/05HE
NF12mm NF12FS
NF16mm NF16FS
NF24mm NF24FS
NF32mm NF32FS
NF44mm NF44FS
NF56mm NF56FS
NF72mm NF72FS
JUKI SMT Mounter feeder :
Part Number Description
E3003706AB0 AF12FS JUKI FEEDER
40081758 CF03HPR 8mm TAPE FEEDER UNIT FOR 0603
40081759 CF05HPR 8mm TAPE FEEDER UNIT FOR 1005
40081760 CF08HER 8mm TAPE FEEDER UNIT (2MM PITCH)
40081761 CF081PR 8mm TAPE FEEDER UNIT
40081762 CF081ER 8mm TAPE FEEDER UNIT
E1001706CB0 CF03HP 8mm TAPE FEEDER UNIT FOR 0603
E1002706CB0 CF05HP 8mm TAPE FEEDER UNIT FOR 1005
E1004706CB0 CF08HE 8mm TAPE FEEDER UNIT (2MM PITCH)
E1005706CB0 CF081P 8mm TAPE FEEDER UNIT
E1003706CB0 CF081E 8mm TAPE FEEDER UNIT
E1012706CB0 CF8L1P 8mm TAPE FEEDER UNIT FOR LARGE REEL
E1011706CB0 CF8L1E 8mm TAPE FEEDER UNIT FOR LARGE REEL
E1006706CB0 CN05HP 8mm TAPE FEEDER UNIT FOR 1005
E1008706CB0 CN08HE 8mm TAPE FEEDER UNIT (2MM PITCH)
E1009706CB0 CN081P 8mm TAPE FEEDER UNIT
E1007706CB0 CN081E 8mm TAPE FEEDER UNIT
E1010706CB0 CN081C 8mm TAPE FEEDER UNIT (PAPER / EMBOSS)
E1014706CB0 CN8L1P 8mm TAPE FEEDER UNIT FOR LARGE REEL
E1013706CB0 CN8L1E 8mm TAPE FEEDER UNIT FOR LARGE REEL
E1015706CB0 CN8L1C 8mm TAPE FEEDER UNIT FOR LARGE REEL
E1001706AB0 AF05HP 8mm TAPE FEEDER UNIT FOR 1005
E1004706AB0 AF081P 8mm TAPE FEEDER UNIT
E1002706AB0 AF081E 8mm TAPE FEEDER UNIT
E1005706AB0 AN05HP 8mm TAPE FEEDER UNIT FOR 1005
E1007706AB0 AN08HE 8mm TAPE FEEDER UNIT (2mm PITCH)
E1008706AB0 AN081P 8mm TAPE FEEDER UNIT
E1006706AB0 AN081E 8mm TAPE FEEDER UNIT
E1009706AB0 AN081C 8mm TAPE FEEDER UNIT
E30007060B0 FF121S 12mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4mm)
E30017060B0 FF122S 12mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 8mm)
E30027060B0 FF123S 12mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 12mm)
E30037060B0 FF12FS 12mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4mm,
DOUBLE ADVANCE: 8, 12mm)
E30047060B0 FF12NS 12mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4, 8,12mm)
E40007060B0 FF161S 16mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4mm)
E40017060B0 FF162S 16mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 8mm)
E40027060B0 FF163S 16mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 12mm)
E40037060B0 FF16FS 16mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4mm,
DOUBLE ADVANCE: 8, 12mm)
E40047060B0 FF16NS 16mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4, 8,12mm)
E50007060B0 FF242S 24mm TAPE FEEDER UNIT (SINGLE ADVANCE: 8mm)
E50017060B0 FF243S 24mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 12mm)
E50027060B0 FF244S 24mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 16mm)
E50037060B0 FF245S 24mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 20mm)
E50047060B0 FF246S 24mm TAPE FEEDER UNIT (DOUBLE ADVANCE: 24mm)
E50057060B0 FF24FS 24mm TAPE FEEDER UNIT
(SINGLE ADVANCE: 8mm, DOUBLE ADVANCE: 12, 16, 20, 24mm)
E50067060B0 FF24NS 24mm TAPE FEEDER UNIT (SINGLE ADVANCE: 4, 8,12mm)
E60007060B0 FF323S 32mm TAPE FEEDER UNIT (SINGLE ADVANCE: 12mm)
E60017060B0 FF324S 32mm TAPE FEEDER UNIT (SINGLE ADVANCE: 16mm)
E60027060B0 FF32FS 32mm TAPE FEEDER UNIT
(SINGLE ADVANCE: 12, 16mm, DOUBLE ADVANCE: 20, 24, 28, 32mm)
E69007050A0 NF3SNS 32mm TAPE FEEDER UNIT (ADHESIVE)
E70007060B0 FF443S 44mm TAPE FEEDER UNIT (SINGLE ADVANCE: 12mm)
E70017060B0 FF444S 44mm TAPE FEEDER UNIT (SINGLE ADVANCE: 16mm)
E70027060B0 FF44FS 44mm TAPE FEEDER UNIT
(SINGLE ADVANCE: 12, 16, 20mm, DOUBLE ADVANCE: 24, 28, 32, 36, 40, 44mm)
E80007060B0 FF564S 56mm TAPE FEEDER UNIT (SINGLE ADVANCE: 12, 16mm)
E80017060B0 FF568S 56mm TAPE FEEDER UNIT
(SINGLE ADVANCE: 12, 16, 20mm, DOUBLE ADVANCE: 24, 28, 32mm)
STICK FEEDER UNIT ( shock / vibration feeder)
E00057190A0 SFN0AS STICK FEEDER (TYPE N0)
E00107190A0 SFN1AS STICK FEEDER (TYPE N1)
E00207190A0 SFN2AS STICK FEEDER (TYPE N2)
E00307190A0 SFN3AS STICK FEEDER (TYPE N3)
E00407190A0 SFN4AS STICK FEEDER (TYPE N4)
E11117190B0 SPACER KIT (FOR SFN1AS-SFN4AS)
E02107190A0 SFW1AS STICK FEEDER (TYPE W1)
E02207190A0 SFW2AS STICK FEEDER (TYPE W2)
E02307190A0 SFW3AS STICK FEEDER (TYPE W3)
E02407190A0 SFW4AS STICK FEEDER (TYPE W4)
E02507190A0 SFW5AS STICK FEEDER (TYPE W5)
Feeder performance will degrade without proper maintenance. Regular cleaning, lubrication,and
calibration are essential. Feeder neglect will lead to:
1. Mispicking of parts
2. Misplacement of parts
3. Flipped parts
Issues related to improper nozzle/feeder maintenance or use of poor quality nozzles are often the
SAMSUNGe. Here are some of the most common problems:
1. Poor pickup location on part. It will cause a loss of vacuum and result in parts shifting on the
nozzle during transport.
2. Short/worn nozzles result in poor pickup and can cause the part not to be imbedded into the paste.
When the part is not placed into the paste correctly there is not enough surface tension to hold the
part while the PCB is moving. Parts will shift.
