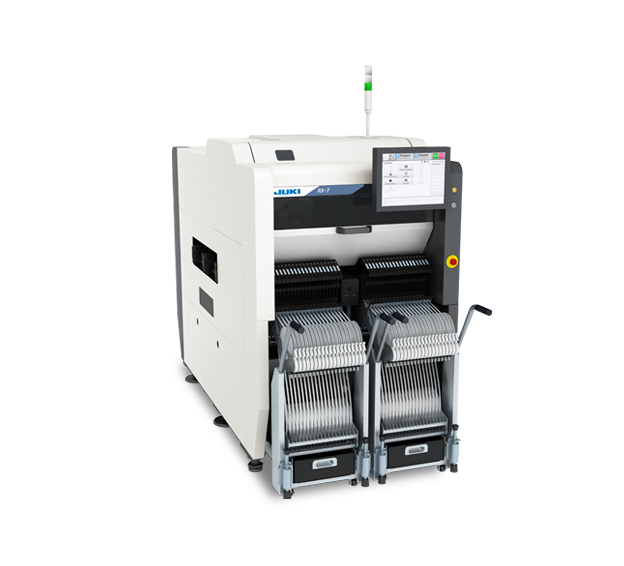

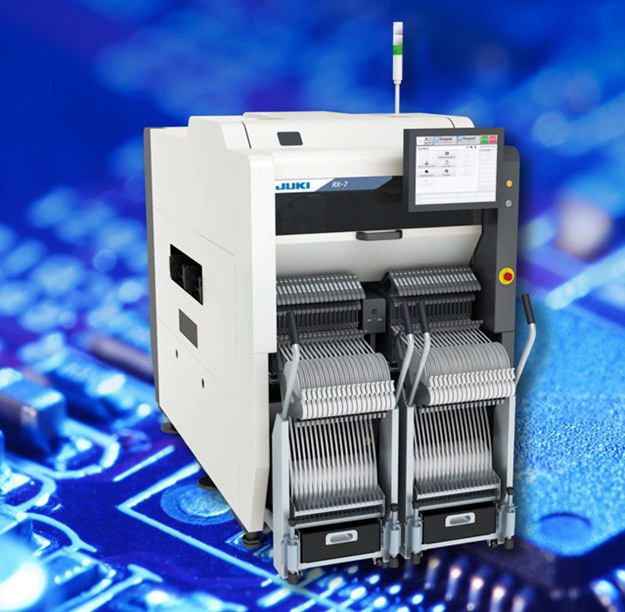

JUKI RX-7 Pick and Place Machine

  • Applicable Components: 0402 (01005) ~ 5mm
  • Board size:50 X 50 ~ 360 X 450mm
  • Feeder inputs:max 76
  • placement capacity:75,000CPH
  • Product description: JUKI RX-7 Modular Pick and Place Machine,Applicable Components: 0402 (01005) ~ 5mm,Board size:50 X 50 ~ 360 X 450mm,Feeder inputs:max 76,placement capacity:75,000CPH
  • INQUIRY

juki RX-7 Modular pick and place machine

Product Description:

JUKI RX-7 Modular Pick and Place Machine,Applicable Components: 0402 (01005) ~ 5mm,Board size:50 X 50 ~ 360 X 450mm,Feeder inputs:max 76,placement capacity:75,000CPH

BOARD SIZE
Single Lane Conveyor:
50 X 50 ~ 360 X 450mm
Dual Lane Conveyor:
50 X 50 ~ 360 X 250mm
COMPONENT SPECS
Component Height: 3mm
Component Size:
0402 (01005) ~ 5mm
FEEDER INPUTS
Max.76 using dual lane 8mm tape
PLACEMENT SPECS
Placement Speed (chip):
Chip Optimum: 75,000CPH
Placement Accuracy:
Laser Recognition: ±40μm (Cpk≧1)


  • Placement speed ( Optimum) Chip : 75,000CPH*1
  • Component size : 03015*2~25mm x 25mm
  • P16 nozzle head that realizes high-speed high-density placement of very small components
  • P8 nozzle head that realizes high-speed and high-accuracy placement of middle and small general-purpose components
  • Space-saving design with a width of 998 mm
  • This is applicable to the dual lane production.
  • An optimum production line can be configured for each production item through a combination of heads.
  • High productivity based on an original planet head and a structure of parallel two heads
  • This is applicable to small-size IC components ranging from 03015 chip*2 to 25 mm square to be placed.
  • *1 When using P16 nozzle head. *2 Please contact to us for detail.

High-Speed Compact modular mounter RX-7





P16×P16
nozzle head

P16×P8
nozzle head

P8×P8
nozzle head

Board size

Single lane conveyer

50×50510mm*1 x 450mm



Dual lane conveyer

50×50510mm*1 x 250mm

Component height

3mm

3mm

(P16 nozzle head)

10.5mm

10.5mm

P8 nozzle head)

Component size

03015*25mm x 5mm

03015*2
5mm x 5mm
(P16 nozzle head)

0603
25mm x 25mm

0603
25mm x 25mm
(P8 nozzle head)

Placement speed (Optimum) chip

CHIP

75,000CPH

54,900 CPH

34,800 CPH

IC

-

6,400 CPH*3

12,800 CPH

Placement accuracy

CHIP

±0.04mm(Cpk≧1)

IC

-

±0.04mm

Component loading quantity

38 (76 in case of 8mm tape) *4

Keywords:

Modular surface mounter, SMT pick and place machine, cheap price second hand pick and place machine,SMT chip mounter, pick and place machine,used chip mounter, second hand IC placer, modular surface mounter second hand price, chip mounter second hand
