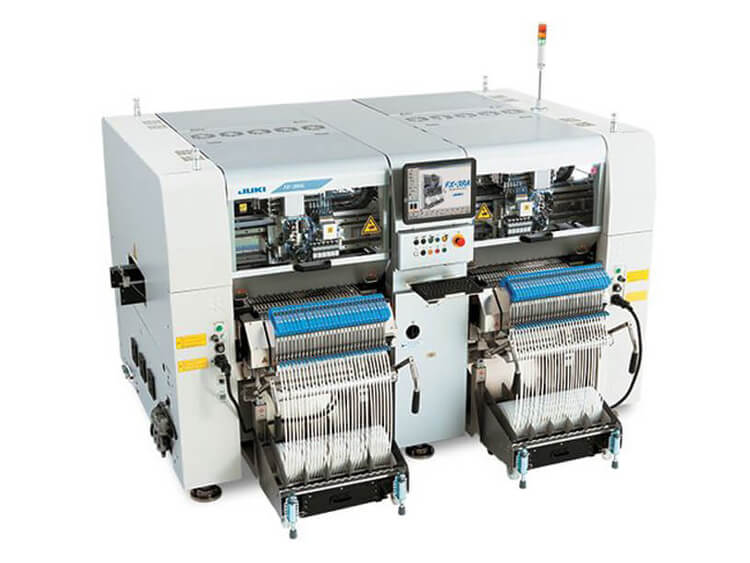

JUKI FX-3RA Modular Pick and Place Machine Manufacturer

JUKI FX-3RA Modular Pick and Place Machine Manufacturer

  • Applicable Components: 0402~5050
  • Board size:50×50??650×370?
  • Feeder inputs:max.112
  • placement capacity:40,000 CPH
  • Product description: JUKI FX-3RA Modular Pick and Place Machine Manufacturer
  • INQUIRY

juki FX-3RA Modular pick and place machine Manufacturer


A high speed modular mounter using a high speed rotary head equipped with 16 nozzles.  EXCEN has the world’s highest speed in the world among mounters of the same class as well as the world’s highest area productivity. In addition, it secures the reliability of fine chip placement by using the function to monitor pre- and post-part placement, SVS (Side-view Vision System), and maximizes work convenience and actual productivity by applying various operation modes including non-stop device type change,mixed production of different boards as well as the SMART Feeder that realizes the world’s first Auto Splicing and Auto Loading functions.

Features:

· 120,000 CPH(Optimum)

· Ultra Slim Design with a Total Length of 1.25m

· High Speed Rotary Modular Head

· Side-view Vision System(SVS) - Monitoring of pre- and post-part placement

· Mixed Production of Different Boards

· Independent Production at the Front and Rear/

· Non-stop Change-over of Device Types

· High Speed and High Precision Feeder

· SMART Feeder - The world’s first Auto Splicing and Auto Loading function

BOARD SIZE

L Size: 410x360mm

L-Wide Size: 510x360mm

XL Size: 610×560mm

COMPONENT SPECS

Component Height: 6mm

Component Size:
Laser Recognition:
0402mm(01005 inch)??33.5mm

FEEDER INPUTS

Max.240 in case of 8mm tape (on a Electric double tape feeder)

PLACEMENT SPECS

Placement Speed (chip):
• 0.040Sec./chip(90,000CPH)
• IPC9850: 66,000CPH

Placement Accuracy:
Laser Recognition: ±0.05mm(±3?)


CPH (Optimum)

120000 (4x 16 spindles)

Max. PCB Size (Standard) (mm)

330 x 310

Optional PCB Sizes (mm)

N/A

Feeder Capacity (8mm)

120

Min. Component Size (imperial)

01005

Max. Component Size (mm)

8 x 8 (54 x 54 by optional head and camera

Max. Component Height (mm)

3 (28mm by optional head)


Keywords:

Modular surface mounter, SMT pick and place machine, cheap price second hand pick and place machine,SMT chip mounter, pick and place machine,used chip mounter, second hand IC placer, modular surface mounter second hand price, chip mounter second hand

Flason Electronic Co.,ltd provide a full smt assembly line solutions, including SMT reflow oven, THT wave soldering machine, Pick and place machine, solder paste printer, PCB loader, PCB unloader, Chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment,PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com




FAQ

1) This is the first time I use this kind of machine, is it easy to operate?

There is English manual or guide video that show you how to use machine.

If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.

2) If machine have any problem after I receive it, how can I do ?

Free parts send to you in machine warranty period.

If the part is less than 0.5KG, we pay the postage.

If it exceeds 0.5KG, you need to pay the postage.

3) MOQ ?

1 set machine, mixed order is also welcomed.

4) How can I buy this machine from you? ( Very easy and flexible !)

A. Consult us about this product on line or by e-mail.

B. Negotiate and confirm the final price , shipping , payment methods and other terms.

C. Send you the proforma invoice and confirm your order.

D. Make the payment according to the method put on proforma invoice.

E. We prepare for your order in terms of the proforma invoice after confirming your full payment.

And 100% quality check before shipping.

F.Send your order by air or by sea.

5)Why choose us ?

A. Gold supplier on Alibaba !

B. Trade assurance to US$54,000 !

C. Best price & Best shipping & Best service !


Contact information
