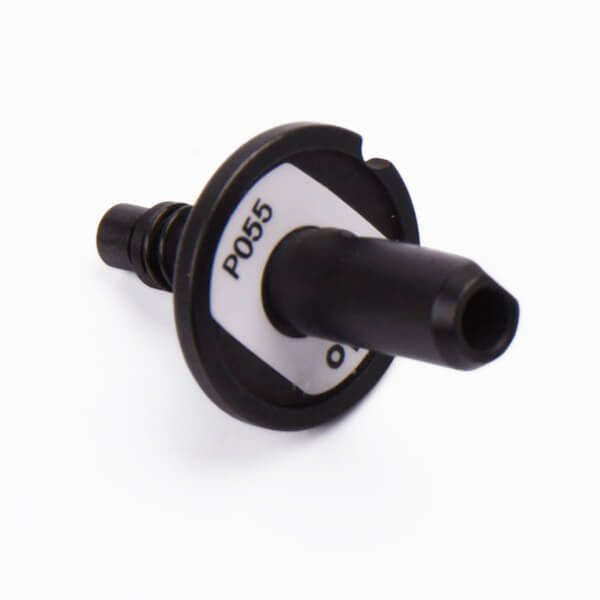

I-pulse M7 M8 P series P055 Nozzle

SMT Nozzle
I-Pulse Nozzle
I-pulse M7 M8 P series P055 Nozzle
Usage:I-Pulse pick and place machine
Product description: I-pulse M7 M8 P series P055 Nozzle
INQUIRY

I-pulse M7 M8 P series P055 Nozzle

Products description

I-pulse series nozzles:
1.M1/M4 type:M001/M002/M003/M004/M005/M006/M012/M013/M017/
M018/M019/M020/M021/M022/M031/M032/M033
2.M2 type:N001/N002/N003/N004/N005/N006/N012/N013/N017/
N018/N019/N020/N021/N022/N031/N032/N033
3.M6 type:P005/P006/P012/P013/P017/P018/P019/P020/P031/P032/P033/P034/P042
4.FV7100/5530 type: K01/K02/K03/K04/K05/K06/K018/K019/K020
5.MT5800 type:G01/G02/G03/G04/G05/G06/G07/G08/G09/G10/G71
6.MT5620E/5520E type:1005/1608/2125/3216

M1 & M4 (M Series Nozzles) Description:
M001 LG0-M7701-00X I-PULSE M1 SERIES PK NZ -M001 (0.5 X 0.4)**
M002 LG0-M7703-00X I-PULSE M1 SERIES PK NZ -M002 (0.9 X 0.62)
M003 LG0-M7705-00X I-PULSE M1 SERIES PK NZ -M003 (1.3 X 0.7)
M004 LG0-M7707-00X I-PULSE M1 SERIES PK NZ -M004 (1.8 X 1.2)
M005 LG0-M7709-00X I-PULSE M1 SERIES PK NZ -M005 (3.0 X 2.0)
M006 LG0-M770B-00X I-PULSE M006 NOZZLE OD : 4.5 / ID : 3.5 **
M012 LG0-M770E-00X I-PULSE M012 NOZZLE OD : 2.0 / ID : 0.8 **
M013 LG0-M770G-00X I-PULSE M013 NOZZLE OD: 2.5 / ID : 1.2 **
M017 LG0-M770H-00X I-PULSE M1 SERIES PK NZ -M017 (3.6 X 0.6)(W/RUBBER PAD)
M018 LG0-M770K-00X I-PULSE M1 SERIES PK NZ -M018 (6.0 X 1.2)(W/RUBBER PAD)
M019 LG0-M770K-00X I-PULSE M1 SERIES PK NZ -M019 (8.0 X 1.2)(W/RUBBER PAD)
M020 LG0-M770P-00X I-PULSE M020 NOZZLE (W/RUBBER PAD) **

M2 (N Series Nozzles) Description:
M001 I-PULSE M2 SERIES PK NZ -N001 (0.5 X 0.4)**
N002 I-PULSE M2 SERIES PK NZ -N002 (0.9 X 0.62)
N003 I-PULSE M2 SERIES PK NZ -N003 (1.3 X 0.7)
N004 I-PULSE M2 SERIES PK NZ -N004 (1.8 X 1.2)
N005 I-PULSE M2 SERIES PK NZ -N005 (3.0 X 2.0)
N006 I-PULSE N006 NOZZLE OD : 4.5 / ID : 3.5 **
N012 I-PULSE N012 NOZZLE OD : 2.0 / ID : 0.8 **
N013 I-PULSE N013 NOZZLE OD: 2.5 / ID : 1.2 **
N017 I-PULSE M2 SERIES PK NZ -N017 (3.6 X 0.6)(W/RUBBER PAD)
N018 I-PULSE M2 SERIES PK NZ -N018 (6.0 X 1.2)(W/RUBBER PAD)
N019 I-PULSE M2 SERIES PK NZ -N019 (8.0 X 1.2)(W/RUBBER PAD)
N020 I-PULSE M020 NOZZLE (W/RUBBER PAD) **

M7, M8 Nozzles (P Series Nozzles) Description:
Model Part Number Description
P001 LC6-M7701-001 P001 0.5x0.4
P002 LC6-M7703-001 P002 0.9x0.6
P003 LC6-M7705-001 P003 ø1.3/ø0.65
P004 LC6-M7707-001 P004 ø1.8/ø1.2
P005 LC6-M7709-001 P005 ø3.0/ø2.0
P006 LC6-M770B-001 P006 ø4.5/ø3.5
P012 LC6-M770D-001 P012 ø2.0 Melf
P013 LC6-M770F-001 P013 ø2.5 Melf
P017 LC6-M770H-001 P017 ø4.0 Rubber
P018 LC6-M770K-001 P018 ø6.0 Rubber
P019 LC6-M770M-001 P019 ø8.0 Rubber
P020 LC6-M770P-001 P020 ø10.0 Rubber

1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.
