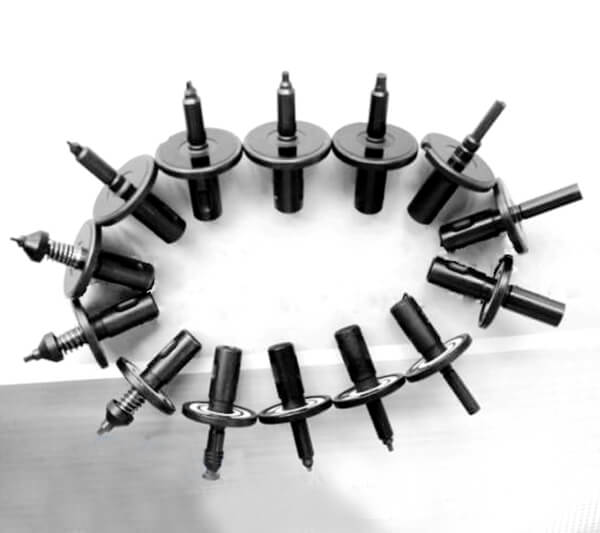

I-Pulse Nozzle for M1 M2 & M4

Products description

P/N: LG0-M7703-00     Des: Nozzle,M002 0.95mmx0.65mm
P/N: LG0-M7703-00XS Des: Nozzle,M002 (modified) 0.7/0.45
P/N: LG0-M7705-00     Des: Nozzle,M003 1.3/0.65
P/N: LG0-M7707-00     Des: Nozzle,M004 1.8/1.2
P/N: LG0-M7709-00     Des: Nozzle,M005 3.0/2.0
P/N: LG0-M770B-00    Des: Nozzle,M006 4.5/3.5
P/N: LG0-M770D-00    Des: Nozzle,M012 2.0/0.9
P/N: LG0-M770F-00    Des: Nozzle,M013 2.5/1.2
P/N: LG0-M770K-00    Des: Nozzle,M018 6.0 PAD
P/N: LG0-M771K-00    Des: Nozzle,M032 BUFFER NOZZLE
P/N: Des: Nozzle,M001 0.4mmx0.5mm
P/N: Des: Nozzle,M017 4.0 PAD
P/N: Des: Nozzle,M019 8.0 PAD
P/N: Des: Nozzle,M020 10 PAD Machine i-Pulse M2
P/N: LC1-M7701-00   Des: Nozzle,N001
P/N: LC1-M7703-00 Des: Nozzle,N002 0.95mmx0.65mm
P/N: LC1-M7703-00XS Des: Nozzle,N002 (modified) 0.7/0.45
P/N: LC1-M7705-00 Des: Nozzle,N003 1.3/0.65
P/N: LC1-M7707-00 Des: Nozzle,N004 1.8/1.2
P/N: LC1-M7709-00 Des: Nozzle,N005 3.0/2.0
P/N: LC1-M770B-00 Des: Nozzle,N006 4.5/3.5
P/N: LC1-M770D-00 Des: Nozzle,N012 Melf
P/N: LC1-M770F-00 Des: Nozzle,N013 Melf
P/N: LC1-M770H-00 Des: Nozzle,N017 4 PAD
P/N: LC1-M770K-00 Des: Nozzle,N018 6 PAD
P/N: LC1-M770M-00 Des: Nozzle,N019 8 PAD
P/N: LC1-M770P-00 Des: Nozzle,N020 10 PAD
P/N: LC1-M770S-00 Des: Nozzle,N021
P/N: LC1-M770U-00 Des: Nozzle,N022
P/N: LC1-M7714-00 Des: Nozzle,N032 BUFFER NOZZLE

M001 LG0-M7701-00X I-PULSE M1 SERIES PK NZ -M001 (0.5 X 0.4)**
M002 LG0-M7703-00X I-PULSE M1 SERIES PK NZ -M002 (0.9 X 0.62)
M003 LG0-M7705-00X I-PULSE M1 SERIES PK NZ -M003 (1.3 X 0.7)
M004 LG0-M7707-00X I-PULSE M1 SERIES PK NZ -M004 (1.8 X 1.2)
M005 LG0-M7709-00X I-PULSE M1 SERIES PK NZ -M005 (3.0 X 2.0)
M006 LG0-M770B-00X I-PULSE M006 NOZZLE OD : 4.5 / ID : 3.5 **
M012 LG0-M770E-00X I-PULSE M012 NOZZLE OD : 2.0 / ID : 0.8 **
M013 LG0-M770G-00X I-PULSE M013 NOZZLE OD: 2.5 / ID : 1.2 **
M017 LG0-M770H-00X I-PULSE M1 SERIES PK NZ -M017 (3.6 X 0.6)(W/RUBBER PAD)
M018 LG0-M770K-00X I-PULSE M1 SERIES PK NZ -M018 (6.0 X 1.2)(W/RUBBER PAD)
M019 LG0-M770K-00X I-PULSE M1 SERIES PK NZ -M019 (8.0 X 1.2)(W/RUBBER PAD)
M020 LG0-M770P-00X I-PULSE M020 NOZZLE (W/RUBBER PAD) **
M001 I-PULSE M2 SERIES PK NZ -N001 (0.5 X 0.4)**
N002 I-PULSE M2 SERIES PK NZ -N002 (0.9 X 0.62)
N003 I-PULSE M2 SERIES PK NZ -N003 (1.3 X 0.7)
N004 I-PULSE M2 SERIES PK NZ -N004 (1.8 X 1.2)
N005 I-PULSE M2 SERIES PK NZ -N005 (3.0 X 2.0)
N006 I-PULSE N006 NOZZLE OD : 4.5 / ID : 3.5 **
N012 I-PULSE N012 NOZZLE OD : 2.0 / ID : 0.8 **
N013 I-PULSE N013 NOZZLE OD: 2.5 / ID : 1.2 **
N017 I-PULSE M2 SERIES PK NZ -N017 (3.6 X 0.6)(W/RUBBER PAD)
N018 I-PULSE M2 SERIES PK NZ -N018 (6.0 X 1.2)(W/RUBBER PAD)
N019 I-PULSE M2 SERIES PK NZ -N019 (8.0 X 1.2)(W/RUBBER PAD)
N020 I-PULSE M020 NOZZLE (W/RUBBER PAD) **

I-Pulse SMT SMD Nozzle. Part Number:LGO-M7705-00X. Part Name: M003 Nozzle. For Yamaha I-pulse M1 M4 Chip Mounter

Model Part Number Description
M001 LG0-M7701-00X I-PULSE M1 SERIES PK NZ -M001 (0.5 X 0.4)**
M002 LG0-M7703-00X I-PULSE M1 SERIES PK NZ -M002 (0.9 X 0.62)
M003 LG0-M7705-00X I-PULSE M1 SERIES PK NZ -M003 (1.3 X 0.7)
M004 LG0-M7707-00X I-PULSE M1 SERIES PK NZ -M004 (1.8 X 1.2)
M005 LG0-M7709-00X I-PULSE M1 SERIES PK NZ -M005 (3.0 X 2.0)
M006 LG0-M770B-00X I-PULSE M006 NOZZLE OD : 4.5 / ID : 3.5 **
M012 LG0-M770E-00X I-PULSE M012 NOZZLE OD : 2.0 / ID : 0.8 **
M013 LG0-M770G-00X I-PULSE M013 NOZZLE OD: 2.5 / ID : 1.2 **
M017 LG0-M770H-00X I-PULSE M1 SERIES PK NZ -M017 (3.6 X 0.6)(W/RUBBER PAD)
M018 LG0-M770K-00X I-PULSE M1 SERIES PK NZ -M018 (6.0 X 1.2)(W/RUBBER PAD)
M019 LG0-M770K-00X I-PULSE M1 SERIES PK NZ -M019 (8.0 X 1.2)(W/RUBBER PAD)
M020 LG0-M770P-00X I-PULSE M020 NOZZLE (W/RUBBER PAD) **

Model Description
M001 I-PULSE M2 SERIES PK NZ -N001 (0.5 X 0.4)**
N002 I-PULSE M2 SERIES PK NZ -N002 (0.9 X 0.62)
N003 I-PULSE M2 SERIES PK NZ -N003 (1.3 X 0.7)
N004 I-PULSE M2 SERIES PK NZ -N004 (1.8 X 1.2)
N005 I-PULSE M2 SERIES PK NZ -N005 (3.0 X 2.0)
N006 I-PULSE N006 NOZZLE OD : 4.5 / ID : 3.5 **
N012 I-PULSE N012 NOZZLE OD : 2.0 / ID : 0.8 **
N013 I-PULSE N013 NOZZLE OD: 2.5 / ID : 1.2 **
N017 I-PULSE M2 SERIES PK NZ -N017 (3.6 X 0.6)(W/RUBBER PAD)
N018 I-PULSE M2 SERIES PK NZ -N018 (6.0 X 1.2)(W/RUBBER PAD)
N019 I-PULSE M2 SERIES PK NZ -N019 (8.0 X 1.2)(W/RUBBER PAD)
N020 I-PULSE M020 NOZZLE (W/RUBBER PAD) **

M1/M4 (with shown sticker ) M001
M1/M4 (with shown sticker ) M003/M004/M005/M006
M1/M4 (with shown sticker ) M012/M013/M021/M022/M002
M1/M4 (with shown sticker ) M017/M018/M019/M020
M1 (with shown sticker ) M031
M1 (with shown sticker ) M032/M033
M2 (with shown sticker ) N001
M2 (with shown sticker ) N002/N003/N004/N005/N006
M2 (with shown sticker ) N012/N013/N021/N022
M2 (with shown sticker ) N017/N018
M2 (with shown sticker ) N031
M2 (with shown sticker ) N032/N033
M6/M7 (with shown sticker ) P031
M6/M7 (with shown sticker ) P032/P033/P034/P042
M6/M7 (with shown sticker ) P005/P006/P012/P013
M6/M7 (with shown sticker ) P017/P018/P019/P020
I-pulse 7100/5530 K01/K02/K03/K04/K05/K06
I-pulse 7100/5530

I-pulse nozzles used in pick and place machine
I-pulse series nozzles:
1.M1/M4 type:M001/M002/M003/M004/M005/M006/M012/M013/M017/M018/M019/M020/M021/M022/M031/M032/M033
2.M2 type:N001/N002/N003/N004/N005/N006/N012/N013/N017/N018/N019/N020/N021/N022/N031/N032/N033
3.M6 type:P005/P006/P012/P013/P017/P018/P019/P020/P031/P032/P033/P034/P042
4.FV7100/5530 type: K01/K02/K03/K04/K05/K06/K018/K019/K020
5.MT5800 type:G01/G02/G03/G04/G05/G06/G07/G08/G09/G10/G71
6.MT5620E/5520E type:1005/1608/2125/3216

M1 & M4 (M Series Nozzles) Description:
M001   LG0-M7701-00X   I-PULSE M1 SERIES PK NZ -M001 (0.5 X 0.4)**
M002   LG0-M7703-00X   I-PULSE M1 SERIES PK NZ -M002 (0.9 X 0.62)
M003   LG0-M7705-00X   I-PULSE M1 SERIES PK NZ -M003 (1.3 X 0.7)
M004   LG0-M7707-00X   I-PULSE M1 SERIES PK NZ -M004 (1.8 X 1.2)
M005   LG0-M7709-00X   I-PULSE M1 SERIES PK NZ -M005 (3.0 X 2.0)
M006   LG0-M770B-00X   I-PULSE M006 NOZZLE   OD : 4.5 / ID : 3.5 **
M012   LG0-M770E-00X   I-PULSE M012 NOZZLE   OD : 2.0 / ID : 0.8 **
M013   LG0-M770G-00X   I-PULSE M013 NOZZLE  OD: 2.5 / ID : 1.2 **
M017   LG0-M770H-00X   I-PULSE M1 SERIES PK NZ -M017 (3.6 X 0.6)(W/RUBBER PAD)
M018   LG0-M770K-00X   I-PULSE M1 SERIES PK NZ -M018 (6.0 X 1.2)(W/RUBBER PAD)
M019   LG0-M770K-00X   I-PULSE M1 SERIES PK NZ -M019 (8.0 X 1.2)(W/RUBBER PAD)
M020   LG0-M770P-00X   I-PULSE M020 NOZZLE (W/RUBBER PAD) **

M2 (N Series Nozzles) Description:
M001   I-PULSE M2 SERIES PK NZ -N001 (0.5 X 0.4)**
N002   I-PULSE M2 SERIES PK NZ -N002 (0.9 X 0.62)
N003   I-PULSE M2 SERIES PK NZ -N003 (1.3 X 0.7)
N004   I-PULSE M2 SERIES PK NZ -N004 (1.8 X 1.2)
N005   I-PULSE M2 SERIES PK NZ -N005 (3.0 X 2.0)
N006   I-PULSE N006 NOZZLE   OD : 4.5 / ID : 3.5 **
N012   I-PULSE N012 NOZZLE   OD : 2.0 / ID : 0.8 **
N013   I-PULSE N013 NOZZLE  OD: 2.5 / ID : 1.2 **
N017   I-PULSE M2 SERIES PK NZ -N017 (3.6 X 0.6)(W/RUBBER PAD)
N018   I-PULSE M2 SERIES PK NZ -N018 (6.0 X 1.2)(W/RUBBER PAD)
N019   I-PULSE M2 SERIES PK NZ -N019 (8.0 X 1.2)(W/RUBBER PAD)
N020   I-PULSE M020 NOZZLE (W/RUBBER PAD) **

M7, M8 Nozzles (P Series Nozzles) Description:
Model              Part Number                Description
P001           LC6-M7701-001                  P001 0.5x0.4
P002           LC6-M7703-001                  P002 0.9x0.6
P003         LC6-M7705-001                P003 ø1.3/ø0.65
P004           LC6-M7707-001                  P004 ø1.8/ø1.2
P005           LC6-M7709-001                  P005 ø3.0/ø2.0
P006           LC6-M770B-001                  P006 ø4.5/ø3.5
P012           LC6-M770D-001                  P012 ø2.0 Melf
P013           LC6-M770F-001                  P013 ø2.5 Melf
P017           LC6-M770H-001                  P017 ø4.0 Rubber
P018           LC6-M770K-001                  P018 ø6.0 Rubber
P019           LC6-M770M-001                  P019 ø8.0 Rubber
P020           LC6-M770P-001                  P020 ø10.0 Rubber

1.Short lead time;
2.Quality guaranteed.
3.All size and model available.
Flason SMT are long term and stable supplier of above stated SMT parts.
Flason SMT will Provide high quality and low price goods and perfect follow-up service.
