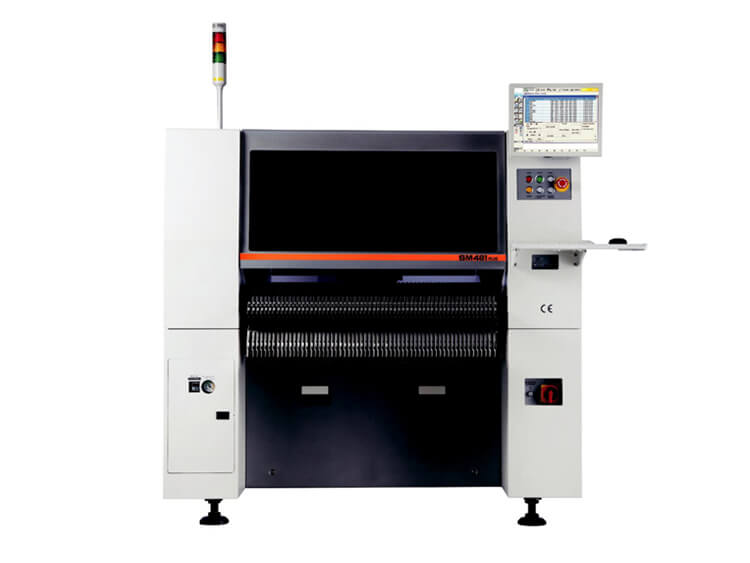

Hanwha SM481 PLUS Pick and Place Machine

10 Spindles × 1 Gantry
Component available: 0402 ~ 42mm(H 15mm)
Max PCB: 460 × 400mm
Speed:40,000CPH
Product description: Hanwha SM481 PLUS Pick and Place Machine 10 Spindles × 1 Gantry, Component available: 0402 ~ 42mm(H 15mm), MaxPCB: 460 × 400mm, Speed:40,000CPH
INQUIRY

Hanwha SM481 PLUS Pick and Place Machine

Specification:

ADVANCED HIGH SPEED FLEXIBLE MOUNTER

As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized achip placement speed of 40,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.

In addition, it is applicable up to 0402 chips and 42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.

Specifications	SAMSUNG SMT pick and place machine
Model Name	SM471plus	SM481plus	SM482plus
Alignment	Flying Vision	Flying Vision+stage vision	Flying Vision+stage vision
Spindles	10 Spindles × 2 Gantries	10 Spindles × 1 Gantry	6 Spindles × 1 Gantry
Placement Speed	78,000CPH(Optimum)	40,000CPH(Optimum)	30,000CPH(Optimum)
Placement Accuracy	±40μm@μ±3σ	±40μm@μ±3σ	±40μm@μ±3σ
Applicable Parts	0402 ~ 14mm(H 12mm)	0402 ~ 42mm(H 15mm)	0402 ~ 55mm(H 15mm)
Applicable PCB(L × W)	Max. 510 × 460(Standard)	Max. 460 × 400(Standard)	Max. 460 × 400(Standard)
Applicable PCB(L × W)	Max. 610 × 460(Option)	Max. 1500 × 460(Option)	Max. 1200 × 510(Option)
Dimension(L.D.H)	1650×1690×1458	1650×1680×1530	1650×1680×1458
Mass(Kg)	Approx. 1820	Approx. 1655	Approx. 1600

Keywords:

JUKI RS-1R pick and place machine, JUKI RX-7R pick and place machine, Hanwha SM481 Plus Pick and Place Machine,SMT pick and place machine, JUKI Pick and place Machine, Samsung Pick and Place Machine, Yamaha Pick and Place Machine, Panasonic Pick and Place Machine, FUJI Pick and Place Machine, Siemens Pick and Place Machine.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT Reflow Oven, Wave Soldering Machine, Pick and Place Machine, SMT Stencil Printer, SMT AOI SPI Machine, SMT Reflow Oven, SMT Peripheral Equipment, SMT Assembly line, SMT Spare Parts etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:+8613691605420, Skype: flasonsmt, Email: tommy@flason-smt.com

FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
