Ersa HOTFLOW 4/8 Reflow Oven

Products description


Ersa HOTFLOW 4/8 Reflow Oven

High performing compact reflow system
Multi-stage cooling, both internal and external
Efficient process gas cleaning system
Low N2 consumption
Auto Profiler for quick profile generation
Multi-track conveyor system available
Thermally invisible center supports
Low energy consumption in continuous operation
Process control software Ersa Process Control (EPC)
Patented grip-conveyor system for flex circuits
Energy-usage optimized fan motors with integrated frequency converters

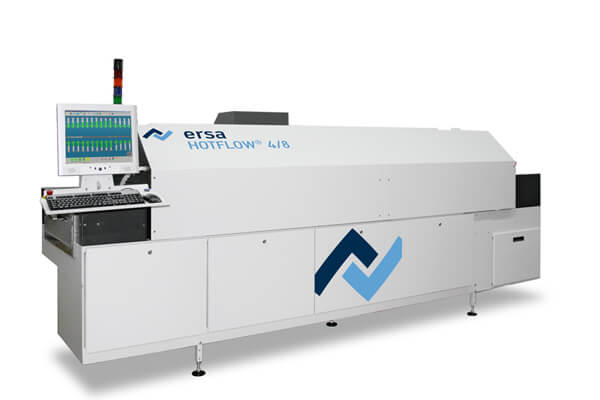

Ersa HOTFLOW 4/8 Reflow Oven

The Ersa HOTFLOW 4/08 Reflow Soldering System is of robust design and manufactured entirely from steel, welded air-tight, powder coated and with interior electric cabinet and a PC operating terminal. Features include the motorized hood opening, quick-change convection heater cassettes, multi-level process gas cleaning and a powerful and effective cooling zone.

Dimensions

Length: 3,905 mm
Width: 1,410 mm
Height: 1,350 mm
Weight app. 1,100 kg
Conveyor system
Working width: 45-560 mm, infinitely, automatically adjustable
Clear passage height: +32/-40 mm
Center support, infinitely, automatically adjustable
Conveyor speed: 20-200 cm/min

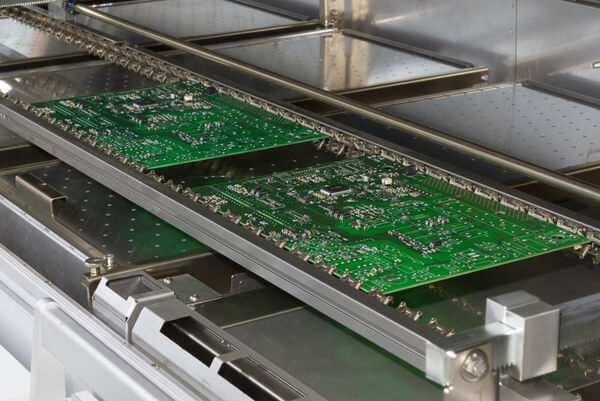

Pin-and-chain conveyor with 3 / 4 / 5 mm pin length
Process zone
Process Length: 3,260 mm
Length Heated: 1,525 mm
Length Cooled: 1,735 mm
Heating system
Convection heating modules, 8 units in total
(Preheating up to 6 units, reflow zone 2 units)
Volumetric flow rate each module adjustable up to 500 m3/h
Rated power each module: 3.3 kW
Cooling

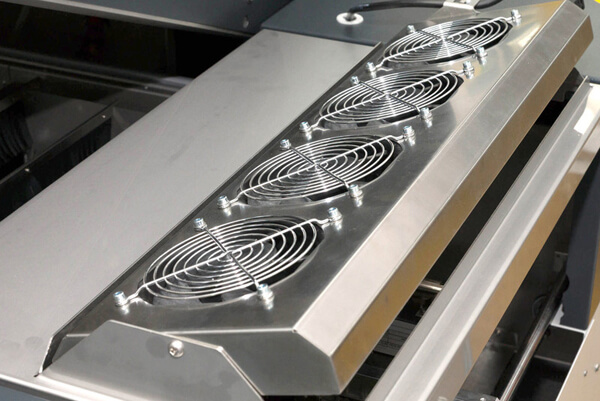

3 level cooling zone with water back cooling
Electrical data
400 V, 3 Phasen, N, P, 50/60 Hz
Continuous output during operation: appr. 6-8 kW
Exhaust
Extraction capacity 2 stacks each 300-600 m3/h, monitored

Options:

  • Pin-and-chain conveyors 3 / 4 / 5 mm pin length
  • Pin-and-chain conveyors  with low-mass center supports
  • Automatic width adjustment of conveyors and low-mass center supports
  • Up to 2 tracks with low-mass center supports in system
  • Patented grip conveyor system for flex boards
  • For an oven with single track, low-mass tubular supports are available
  • Operation possible with either ambient air or with nitrogen atmosphere
  • Cooling available with either integrated or external cooling unit
  • Cooling with either cooling unit or with local cold water connection
