Ersa HOTFLOW 3/14e Reflow Oven
Products description
-
Dual track transport increases throughput
-
Optimized heat transfer, minimized ΔT zone
-
Separation
-
Internal cooling
-
Lowest energy consumption
-
Removable heating modules top and bottom
-
Extreme low-mass center support
-
ERSASOFT Process Data Recorder
-
ERSASOFT – user-friendly machine control
-
Auto profiler for rapid offline profiling
Ersa HOTFLOW 3/14e Reflow Oven

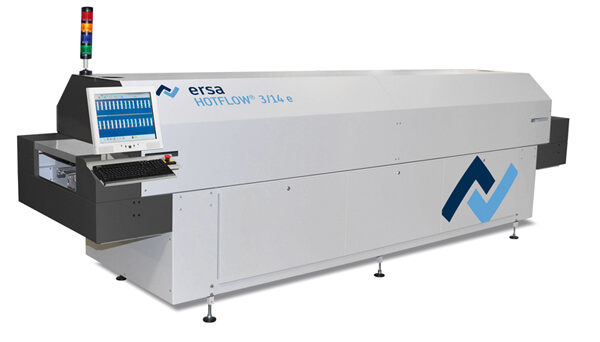

The Ersa HOTFLOW 3/14e Reflow System is of robust design and manufactured entirely from steel, welded air-tight, powder coated and with interior electric cabinet and a PC operating terminal. Features include the motorized hood opening, quick-change convection heater cassettes, multi-level process gas cleaning and a powerful and effective cooling zone.
Dimensions
Length: 4,770 mm
Width: 1,201 mm
Height: 1,375 mm
Weight appr. 1,450 kg
Conveyor system
Working width: 45-516 mm automatically infinitely adjustable
Clear passage height: +35/-37 mm
Center support, automatically infinitely adjustable
Conveyor speed: 20-200 cm/min
Pin-and-chain conveyor with either 3 / 4 / 5 mm pin length
Process zone
Process length: 3,345 mm
Heated length: 2,610 mm
Cooling length: 735 mm

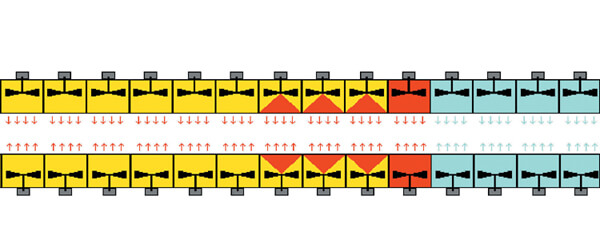

Heating system
Up to 14 convection heating cassettes
(Preheat zone 10 cassettes, reflow zone 4 cassettes)
Volumetric flow rate each module, adjustable up to 500 m3/h
Rated power each module: 3.3 kW
Rated power last module: 4.5 kW
Cooling
Up to 2 level cooling zone (air)
Electrical data
400 V, 3 Phase, N, Ground, 50/60 Hz
Continuous output during operation: appr. 11-14 kW
Exhaust
Extraction capacity: stack at entry of system 300 m3/h; stack at exit of system 400 m3/h, both with monitoring feature
Options:
-
Pin-and-chain conveyor with low-mass center support
-
Automatic adjustment of the conveyor width and the center support
-
Up to 2 tracks with center supports in the system
-
For single track systems, low-mass tubular supports are available
-
Operating in ambient atmosphere, internal cooling with room air
-
RPMs of fan motor are adjustable via frequency converters
-
Pin-and-chain conveyor with either 3 / 4 / 5 mm pin length
