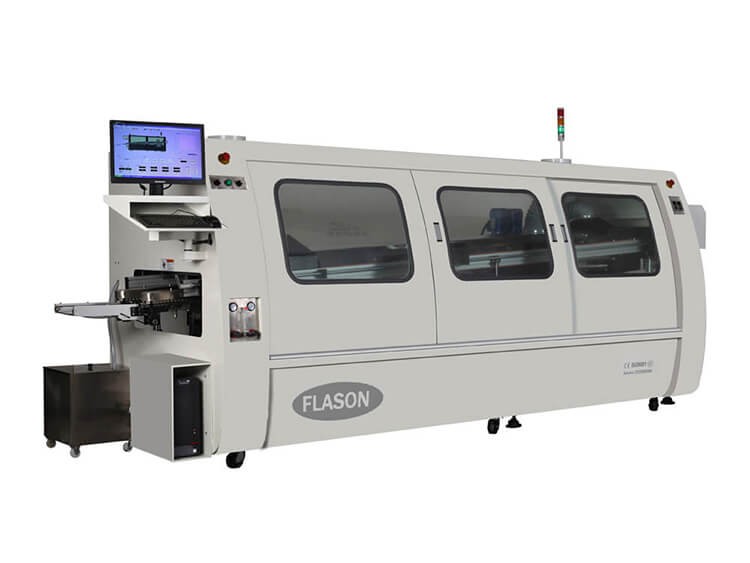

  • Nitrogen wave soldering machine Manufacturer Supplier China factory
Nitrogen wave soldering machine Manufacturer Supplier China factory

Nitrogen wave soldering machine Manufacturer Supplier China factory

  • Weight: 1100KG
  • Dimensions: 4300(L)*1400(W)*1560(H)
  • spray fashion: step motor+ST 8 nozzle
  • Heating zone Length: 2000mm
  • Product description: Nitrogen wave soldering machine Manufacturer Supplier China factory,we produce real nitrogen wave soldering machine oxygen level less than 1000PPM.
  • INQUIRY

China Nitrogen wave soldering machine Manufacturer

We produce the real nitrogen wave soldering machine that sealed the solder pot in the whole heating passage, that can really leave the nitrogen in the wave soldering machine heating and soldering passage, and leave the nitrogen level around 1000ppm. Other Supplier's whose nitrogen wave soldering machine that solder pot didn't in the soldering passage can't reach this level and that kind nitrogen wave soldering machine is really no use.

INTRODUCTION:

1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed

2. Automatic power system, inverter control, automatic board in-load feature.

3. Flux sprayer using transverse Japanese spray nozzle and driving by step motor. PLC controlled, accurate and reliable.

4. Preheating system uses four independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

5. Titanium solder fingers, high strengthened double v-groove with tin resistant

6. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.

7. Pre-heat passage with modularized design, environmental protection and safety, convenient for cleanup.

8. PID close loop controlled infrare pre-heaters

9. Timer startup feature for solder pot, solder melted in within 90 minutes.

10. With black box memory function, the machine can always store the SPC data, improve work efficiency.

11. Automatic finger cleaner equipped.

12. Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

13. Nitrogen Structure (optional): High accuracy Oxygen analyzer, Nitrogen consumption of 16m3/hr based on 1000ppm.



Model No.

Flason Top-350

Number of heating zones

4

Length of heating zones

2000mm

Total/steady consumption

30KW/8-11KW

Air supply

0.5MPa

Preheating style

Infrare heater

Preheating consumption

220V 8KW

Control method

PC +PLC

Range of temp. set-point

Room temperature---300ºC

Preheating time

About 10-15mins for setting 150ºC

Solder Application

Lead-free

Solder pot capacity

400KG

Solder pot temperature

300ºC

Solder pot material

Cast Iron Ceramic Coating

Heater consumption

380V 8KW

Solder temp. control method

PID+SSR

Wave motor consumption

1KW 220V

Wave height Control

Inverter

Solder melting time

About 180mins for setting 250ºC

PCB width

60-450mm

Product clearance

Top 120mm(option 160mm) Bottom 15mm

Conveyor speed

0-2000mm/min

Process height

750+/-20mm

Conveyor direction

Lto R (R to L optional)

Conveyor Inclination

4-7 º

Process width adjustment

Auto

UPS

Option

Nitrogen structure

Option

Flux pressure/capacity

3-5 bar/6.5L

Weight

1100KG

Power Requirement

3P5W,380/220V 50Hz 63A

Dimensions

4300(L)*1400(W)*1560(H)
