  • 4 Heating Zones Small Reflow Oven
4 Heating Zones Small Reflow Oven

4 Heating Zones Small Reflow Oven

  • Name: SMT Reflow Oven
  • Heating zones: 6
  • Heating method: Hot Air
  • Usage: SMT Assembly line
  • Product description: 4 Heating Zones Small Reflow Oven A4 Manfuacturer directly price
  • INQUIRY

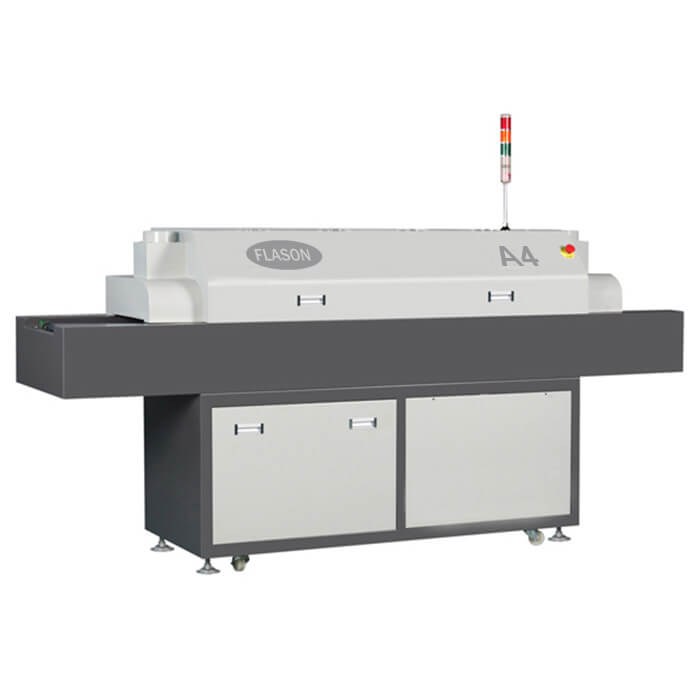

4 Heating Zones Small reflow oven A4

Introduction:



No.1 The unique advanced long life heating system

1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The

peak wave length of the radiation power is 4UM with curved surface reflector increasing temperature ramp up speed, improve the thermal efficiency. The special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely.

2. Using special high temperature barrier structure for heat preservation and special iron in

Heating passage.

3. Using imported Taiwan SanYue long shaft high temperature blower motor and W shaped heat duct, no noise & vibration, convenient for maintenance.

4. Heating zones with porous aluminum plate directing the hot air to guarantee the heat evenly distributed to the PCB. Hood can open completely so that convenient for cleanup.

No.2 Smooth and reliable transmission system

1. The conveyor system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running smooth, speed varies in 0-1000mm/min.

2. Independent roller structure support and match stainless steel mesh belt to make the running smoothly and the speed precision is up to ±20 mm/min.

3.Special stainless steel mesh belt: durable and wear-resistant, long lifetime.

No.3 Stable and reliable electrical control system

1. It adopts imported thermostat control which owns fuzzy logic and PID close loop system. It can fast response to temperature changes and ensure temperature compensation by PID intelligent operation.

2. Using thermocouple imported from Taiwan to each temperature zone, it can fast and sensitive response the changes in each temperature zone, feedback and control timely, compensate the temperature stability in each zone.

3. Special SSR solid state relay matched with dedicated heat dissipating block improve the heat efficiency greatly and prolong the lifetime effectively. Non-contact output and fuzzy control function by thermostat, can monitor the changes of environmental temperature, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform internal temperature. The length ,direction, temperature distribution, all these meet with IPC standards .

4. Heat energy is abundant, heat up fast, it’s only need 20 minutes from room temperature to set-point temperature.

5. Failure diagnosis, visual & audio alarm.

6. Delay shutdown production function, uniform cooling after the shutdown: prevent hardwares thermal damaged.


model Flason A4
Number of heating-zone up four/bottom four
Length of heating-zone 1400mm
Heating way Independent and cycle full hot air
Max width of PCB board 300mm
Transmission direction left→right
Transmission belt height 800±20mm
Transmission speed 0-2000mm/min
Starting power 10KW
Normal working consume 4KW
Warm-up time About 20 minutes
Temperature control range Room temperature-300ºC
Temperature control way PID controlling
Temperature precision accuracy ±1ºC
Temperature disparity on PCB board ±2ºC
Abnormity alarm Temperature abnormity supper high or supper low temperature
After constant temperature
Power supply 5 lines and 3 phase 380V 50/60Hz
dimension(mm) 2600×615×1400mm
weight 350KG

Specification:

Key words:

SMT reflow oven, soldering oven, SMT oven, SMT soldering reflow oven, smt assembly line reflow oven, PCB soldering reflow oven, SMT assembly oven, PCB soldering oven, LED reflow oven, LED PCB reflow oven.

Flason Electronic Co.,ltd provide a full SMT assembly line solutions, including SMT reflow oven, THT wave soldering machine, pick and place machine, solder paste printer, PCB loader, PCB unloader, chip mounter, SMT AOI machine, SMT SPI machine, SMT X-Ray machine, SMT assembly line equipment, PCB production Equipment etc any kind SMT machines you may need, please contact us for more information: wechat whatsapp:008613691605420, Skype: flasonsmt, Email: sales@flason-smt.com
